EXPLORER™

GLAZED PORCELAIN

Explorer™ artfully incorporates the look of reclaimed wood and stone providing an urban feel in four alluring colors and mosaics using HD technology.

4 Colors | 4 Sizes | 1 Mosaic

Technical Specifications

Nominal Size (in.) 6 x 35 12 x 24 18 x 18 13 x 13 2 x 2 Mosaic
Edge Detail Pressed Pressed Pressed Pressed Pressed
Finish Matte Matte Matte Matte Matte
Faces Random Random Random Random Random
Thickness (in.)* 3/8 3/8 3/8 3/8 3/8
Lbs/PC 6.5 8.6 8.49 4.08 3.34
Grout Joint Width (in.) 3/16 3/16 3/16 3/16 3/16

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

Testing

Method Results
Abrasion Resistance C1027 IV
Breaking Strength C648 >300 lbf
Chemical Resistance C650 Nonresistant
Water Absorption C373 <.5%

DCOF AcuTest WET

≥.60

Freeze-Thaw Cycling C1026 Resistant
Scratch Hardness MOHS 7
Shade Variation V2
Pre-Consumer Recycled Content 0%
Post- Consumer Recycled Content 0%
VOC None

Download and View SDS

Download and View HPD

Download and View LEED

Download 3 Part CSI

Download and View Care and Maintenance

12”x 24” 11.81”x 23.62”)


18”x 18” (17.72”x 17.72”)


13”x 13” (12.99”x 12.99”)

6"x 35" (5.91"x 35.43)

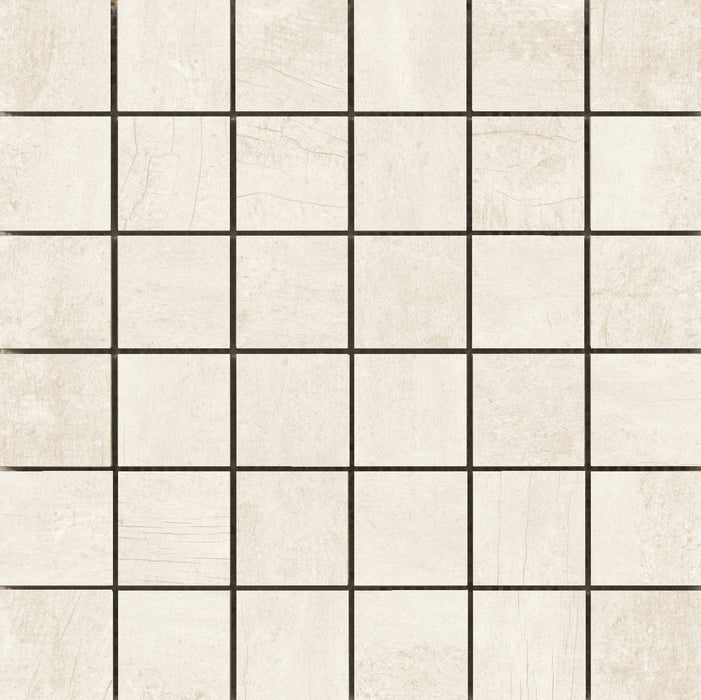

2"x2" on 13”x 13” Mesh Mosaic  (12.60”x 12.60”)

3”x13” Floor SBN

USAGE TYPES: YES/NO
COMMERCIAL FLOOR* Yes
RESIDENTIAL FLOOR Yes
RESIDENTIAL AND COMMERCIAL WALL Yes
SHOWER WALL Yes
SHOWER FLOOR Yes
STEAM SHOWER Yes
KITCHEN COUNTER Yes
STOVE AREA Yes
FIREPLACE FACADE Yes
COVERED EXTERIOR WALL FREEZING CLIMATES Yes
COVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
UNCOVERED EXTERIOR WALL FREEZING CLIMATES Yes
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
COVERED EXTERIOR FLOOR FREEZING CLIMATES Yes
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES Yes
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES Yes
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES Yes
POOL DECK Yes
POOL WATERLINE Yes
INSIDE POOL Yes
SPA / HOT TUB Yes
UV/ SUN EXPOSURE SENSITIVE No

* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.

The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.

Loading...

SKU:

F07EXPLPA1224


Name:

Color
Explorer Paris
Explorer Barcelona
Explorer London
Explorer Milan
Color Name
Gray
Beige
