A three dimensional look that transcends classic subway tiles.
6 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 3 x 12 |
| Finish | Glossy |
| Faces | 1 |
| Thickness (mm.)* | 9 |
| Lbs/Pc | 0.80 |
| Grout Joint Recommendation | 3/16" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Stain Resistance C1378 |
Resistant |
| Breaking Strength C648 | >250LBF |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <20.0% |
| Scratch Hardness MOHS | 5 |
| Shade Variation | V2 |
| Crazing Resistance C424 |
Resistant |
3” x 12”
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | No |
| COMMERCIAL FLOOR DRY* | No |
| RESIDENTIAL FLOOR | No |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR |
No |
| COMMERCIAL SHOWER FLOOR |
No |
| STEAM SHOWER | No |
| KITCHEN COUNTER |
No |
| STOVE AREA |
Yes |

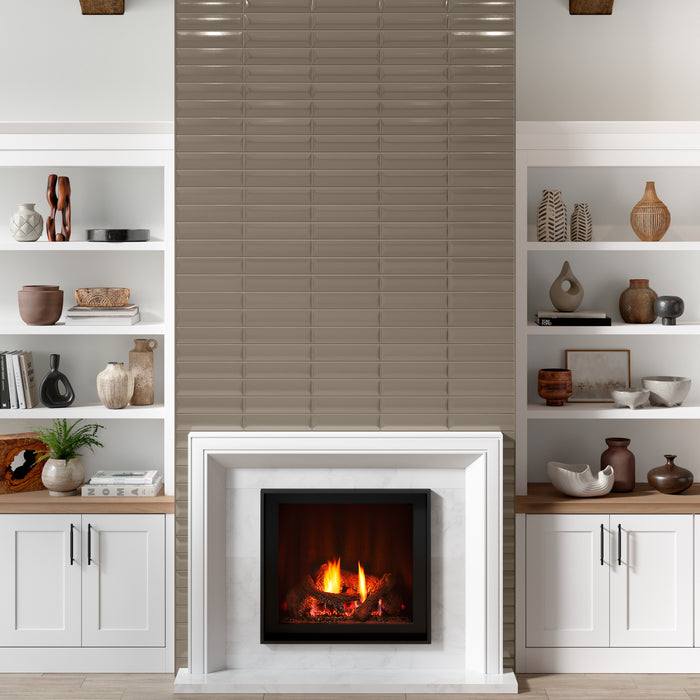

| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | No |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE |
No |
| UV STABLE |
Yes |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
W23SPHEWH0312P
A three dimensional look that transcends classic subway tiles.
6 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 3 x 12 |
| Finish | Glossy |
| Faces | 1 |
| Thickness (mm.)* | 9 |
| Lbs/Pc | 0.80 |
| Grout Joint Recommendation | 3/16" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Stain Resistance C1378 |
Resistant |
| Breaking Strength C648 | >250LBF |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <20.0% |
| Scratch Hardness MOHS | 5 |
| Shade Variation | V2 |
| Crazing Resistance C424 |
Resistant |
Download and View Care and Maintenance
3” x 12”
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | No |
| COMMERCIAL FLOOR DRY* | No |
| RESIDENTIAL FLOOR | No |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR |
No |
| COMMERCIAL SHOWER FLOOR |
No |
| STEAM SHOWER | No |
| KITCHEN COUNTER |
No |
| STOVE AREA |
Yes |
| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | No |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE |
No |
| UV STABLE |
Yes |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
White / 3" x 12" / White
W23SPHEWH0312P
Fawn / 3" x 12" / Fawn
W23SPHEFA0312P

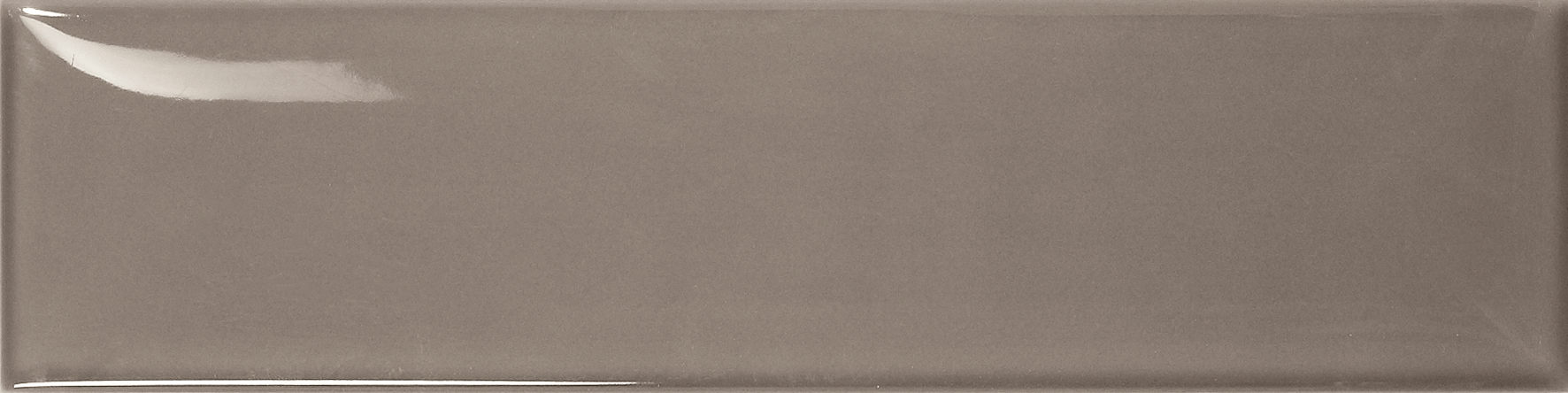

Taupe / 3" x 12" / Taupe
W23SPHETA0312P

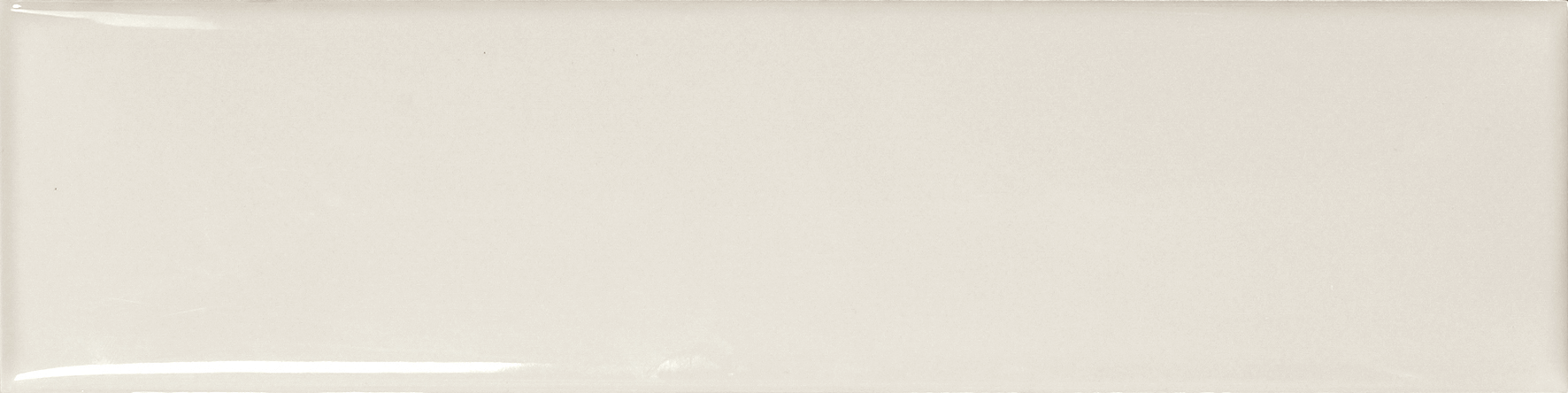

Ivory / 3" x 12" / Ivory
W23SPHEIV0312P
Mint / 3" x 12" / Mint
W23SPHEMI0312P

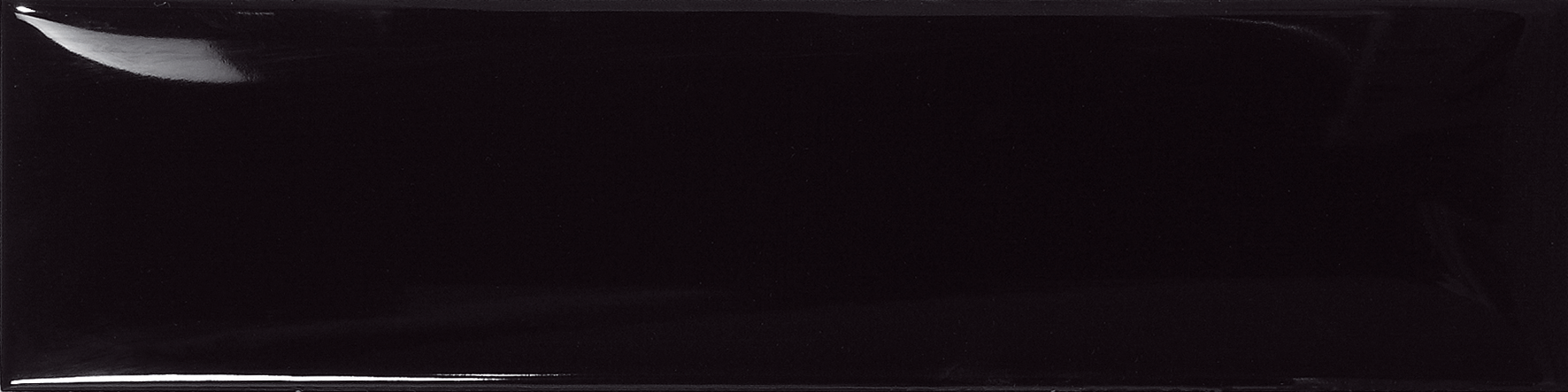

Black / 3" x 12" / Black
W23SPHEBK0312P
