RETRO™

GLAZED PORCELAIN MOSAIC

Retro™ revisits a classic mod-inspired mosaic with a unique blend of metallic and crackled finishes. Each hue expresses a slightly different contrasting color, enhancing the crackled texture. This mixed-material mosaic lends to on-trend designs.

4 Colors | 1 Size

Technical Specifications

Nominal Size (in.) 9 x 10
Edge Detail Pressed
Finish Glossy & Matte Blend
Faces Random
Thickness (in.)* 5/16
Lbs/PC 2.65
Grout Joint Recommendation (in.) 1/8

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

Testing

Method Results
Abrasion Resistance C1027 0
Breaking Strength C648 <250
Chemical Resistance C650 Nonresistant
Water Absorption C373 <0.50
DCOF AcuTest WET N/A
Freeze-Thaw Cycling C1026 Nonresisitant
Scratch Hardness MOHS 5
Shade Variation V3
Pre-Consumer Recycled Content 0%
Post-Consumer Recycled Content 0%
VOC None

Download and View SDS

Download and View HPD

Download and View LEED

Download 3 Part CSI

Download and View Care and Maintenance

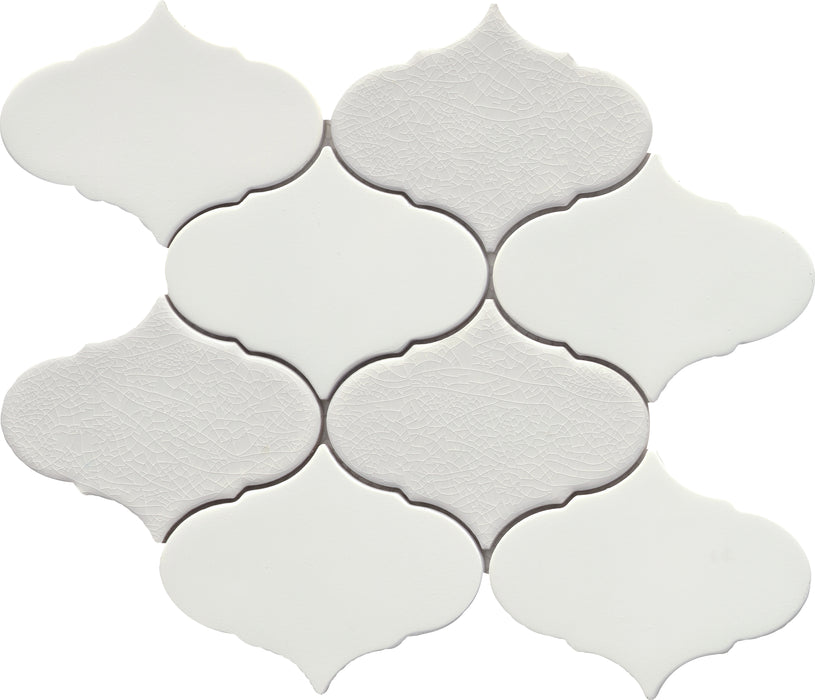

      9” x 10”  Mosaic on Mesh

      USAGE TYPES: YES/NO
      COMMERCIAL FLOOR* No
      RESIDENTIAL FLOOR Yes
      RESIDENTIAL AND COMMERCIAL WALL Yes
      SHOWER WALL Yes
      SHOWER FLOOR Yes
      STEAM SHOWER Yes
      KITCHEN COUNTER No
      STOVE AREA Yes
      FIREPLACE FACADE Yes
      COVERED EXTERIOR WALL FREEZING CLIMATES Yes
      COVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
      UNCOVERED EXTERIOR WALL FREEZING CLIMATES Yes
      UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
      COVERED EXTERIOR FLOOR FREEZING CLIMATES No
      COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES No
      UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES No
      UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES No
      POOL DECK No
      POOL WATERLINE Yes
      INSIDE POOL No
      SPA / HOT TUB No
      UV/ SUN EXPOSURE SENSITIVE Yes

      * Emser recommends a .50 or greater DCOF for Commercial Dining Floors.

      Textured / Crackle Finish Installation Recommendation: is to install the tile on the wall, seal, then grout. If working in an enclosed area use 511 H2O Plus which is a water based penetrating sealer with no VOC issues (chemical based rather than water based not safe in enclosed areas). If there is more air flow regular 511 or any penetrating sealer is fine.

      The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.

      Loading...

      SKU:

      W85RETRPE0910MOC


      Name:

      Color
      Retro Pearl Cloud
      Retro Silver Cloud
      Retro Bronze Cloud
      Retro Chrome Cloud
      Color Name
      White
      Blue
      Bronze
      Black
