IMMERSE™
GLAZED PORCELAIN
Description

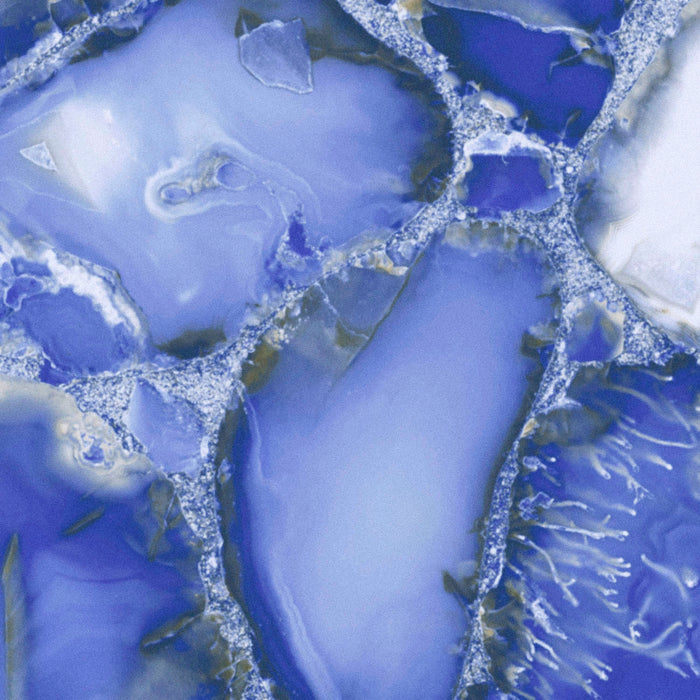

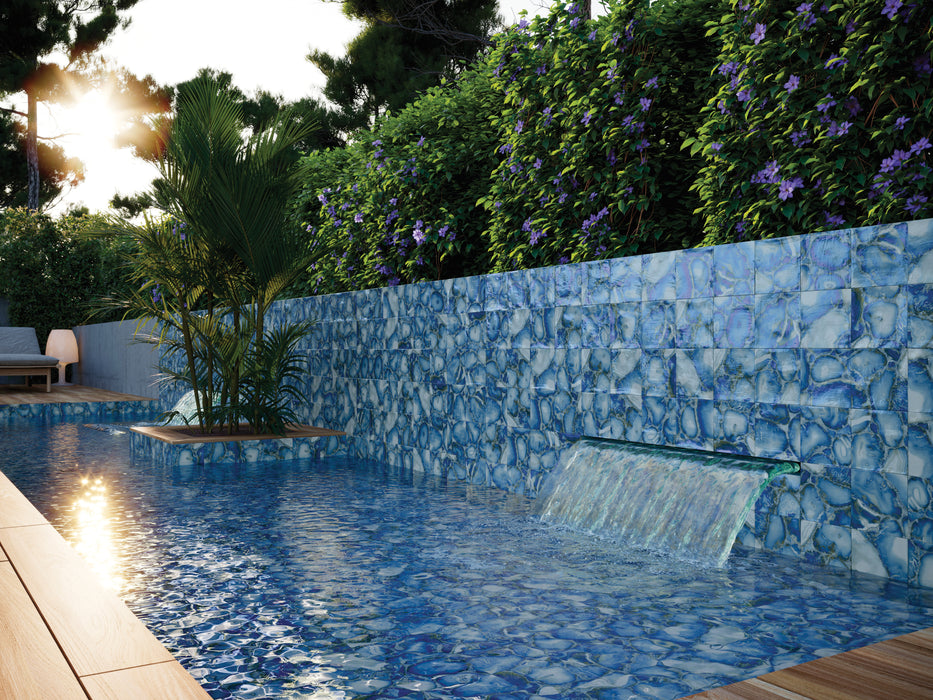

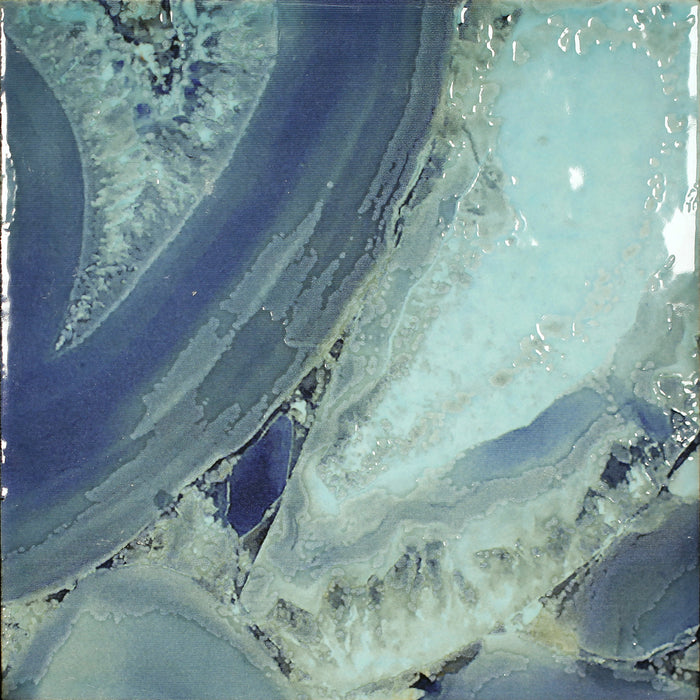

The many benefits of tile extend to the outdoors with Immerse™ porcelain tile as a prime example. Designed for walls, in addition to being pool-rated, let your imagination take over with a one-of-a-kind design featuring three splashy colors: Cobalt, Aqua and Teal. Matches perfectly with Waterlace.
3 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 6" x 6" |
| Edge Detail | Pressed |
| Finish | Glossy |
| Faces | 10 |
| Thickness (mm) | 9mm |
| Lbs/PC | 0.90 |
| Grout Joint Recommendation (in.) | TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | III |
| DCOF AcuTest WET | <0.42 |
| Scratch Hardness MOHS | 4 |
| Breaking Strength C648 |
>250 LBF |
| Chemical Resistance C650 | Resistant |
| Stain Resistance |
Resistant |
| Water Absorption C372 | <1.0% |
| Shade Variation | TIP |
Download and View Care and Maintenance
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | NO |
| COMMERCIAL FLOOR DRY* | NO |
| RESIDENTIAL FLOOR | NO |
| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| RESIDENTIAL SHOWER FLOOR |
NO |
| COMMERCIAL SHOWER FLOOR |
NO |
| STEAM SHOWER | YES |
| KITCHEN COUNTER |
NO |
| STOVE AREA |
YES |
| FIREPLACE FAÇADE | YES |
| EXTERIOR WALL | YES |
| EXTERIOR FLOOR (NOT POOL) | NO |
| POOL WATERLINE |
YES |
| UV STABLE |
YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
