EMCORE™ GLUE DOWN
LUXURY VINYL TILE
Description
This collection of vinyl plank products is appropriate for any interior flooring application. Emcore by Emser Tile™ is a solid-core construction, waterproof material that is stain-, scratch- and dent-resistant. The glue down installation method involves the use of an adhesive to adhere the dryback luxury vinyl flooring to its base. Using an adhesive creates dimensional stability that ensures the flooring maintains its natural characteristics, providing the realistic look of wood with easier installation and maintenance.
Additional colors and thicknesses available through special order (MOQs and lead time may apply).
Technical Specifications

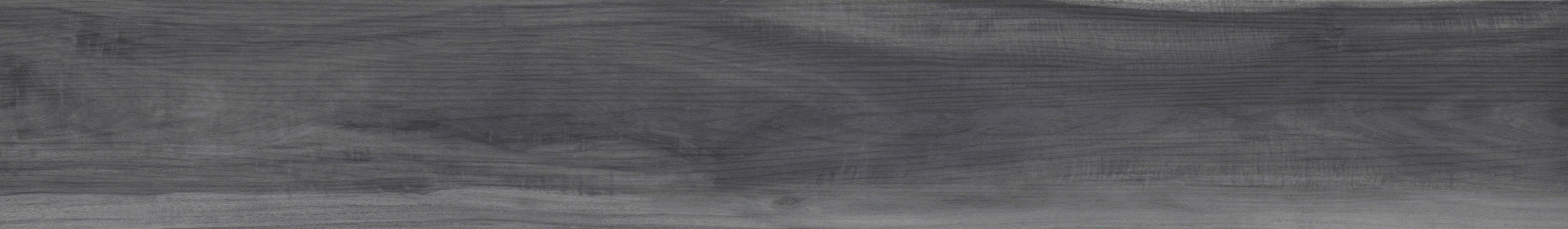

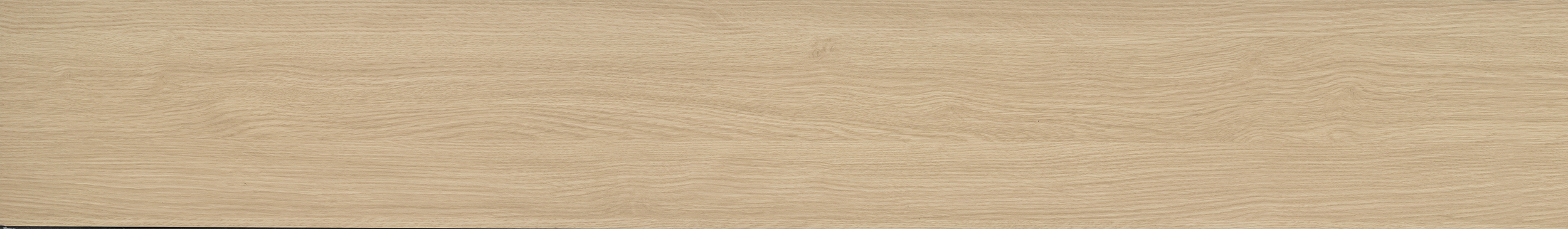

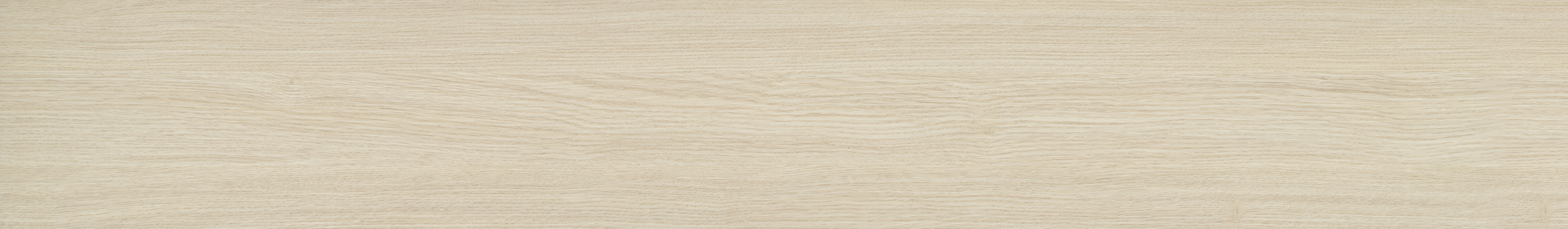

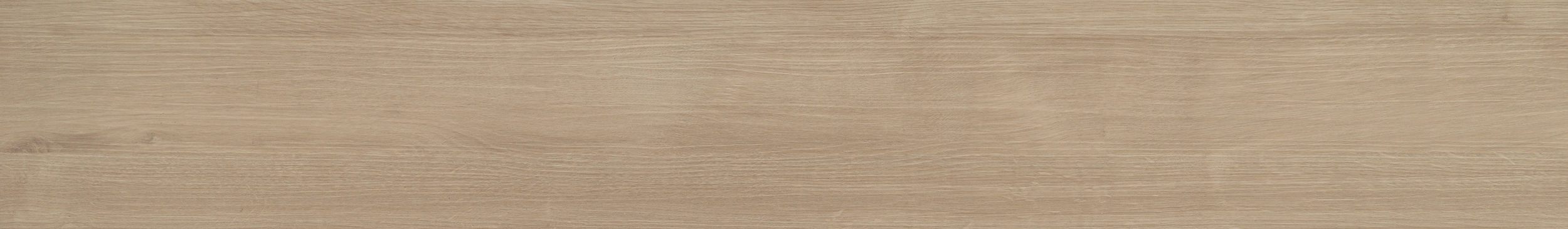

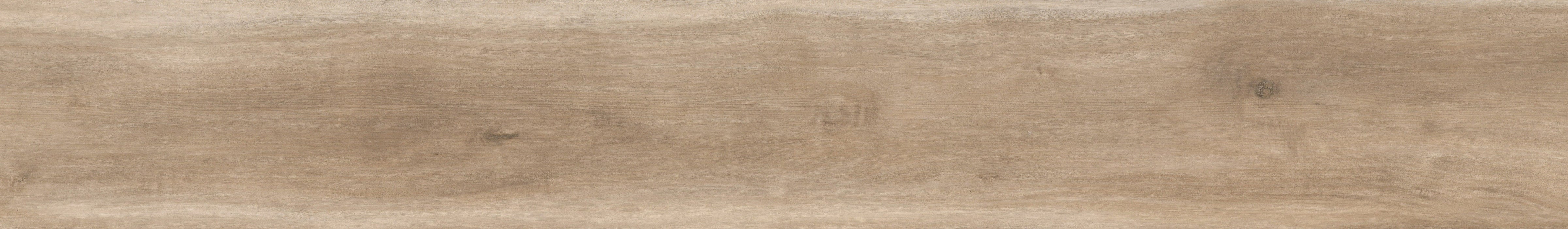

6 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 7" x 48" |
| Edge Detail | Square |
| Faces | TIP |
| Thickness (mm)* | 2mm |
| Wear Layer |
12mil |
| Construction |
Dry Back |
| Texture | Embossed |
| Installation Method | Glue Down |
| UV Coating | Yes |
| Gloss | Low/Matte |
| Backing | None |
The Emcore™ collection by Emser Tile™ contains no phthalates or heavy metal and is 100% virgin vinyl.
Testing
| Method | Results |
| Squareness ASTM F2421 | PASS |
| Dimensional Tolerances ISO 24337 | PASS |
| Dimensional Stability ASTM F2199 | PASS |
| Slip Resistance DIN 51130 | R 10 |
| Residual Indentation ASTM F1914 | PASS (0.001”) |
| Deep Abrasion ASTM D4060 | 25,000 CYCLES |
| Resistance to Bacteria ASTM G21 | 0 - PASS |
| Castor Chair Resistance ANSI LF-01 | PASS (25,000 CYCLES) |
| Heat Stability ASTM F1514 | PASS (<2MM) |
| Resistance to Chemicals ASTM F925 | PASS |
| Smoke Density ASTM E662 | <450 |
| Impact Sound Reductions ASTM E2179 | Δ IIC 55 dB |
| Stain Resistance ASTM E423 | NOT AFFECTED |
| Heavy Metals ASTM F963-16 | FREE - PASS |
| Emissions Testing CDHP/CAL 1350 | PASS (0g/L) |
| VOC Requirements ASTM D5116 | PASS (0g/L) |
Sizes and Trim

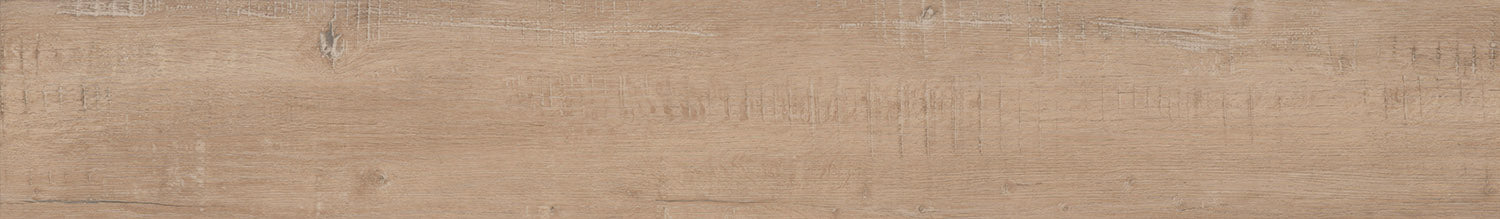

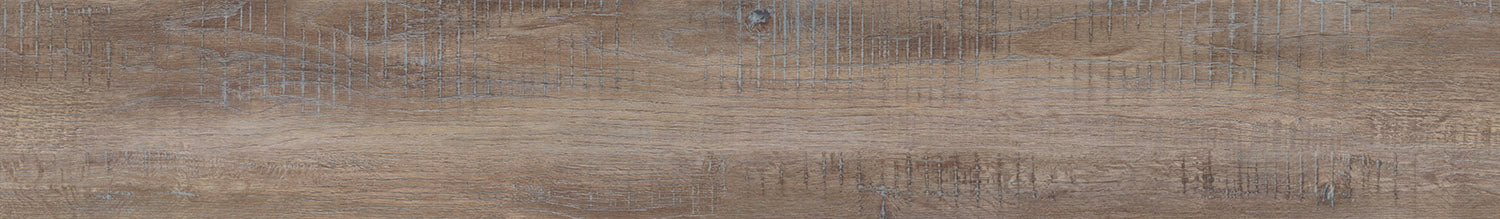

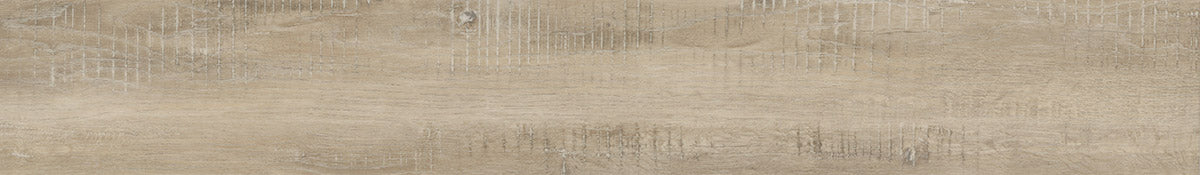

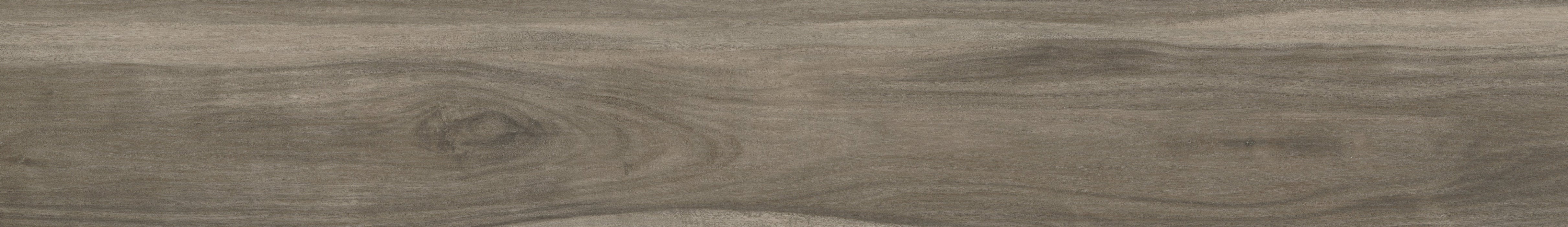

7" x 48"
TRIM
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR | YES |
| RESIDENTIAL FLOOR | YES |
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
