ECHO™

GLASS MOSAIC

Echo™ portrays a dynamic union of shape, pattern, and sustainability. Hexagon and herringbone mosaic tiles are crafted entirely of recycled white, gray, and brown glass. Finished with high-definition inkjets of wood grain and Calacatta marble patterns, the glass mosaic series is ideal for kitchen and bath surfaces.

8 Mosaics | TBD" Mosaic Thickness

Technical Specifications
ASTM Test Results
Abrasion Resistance C1027 0
Breaking Strength C648 ≥250
Chemical Resistance C650 Resistant
Water Absorption C373 ≤ 0.50
DCOF AcuTest WET Wall Only
Freeze-Thaw Cycling C1026 Resistant
Scratch Hardness MOHS 5
Shade Variation 2

 Download and View SDS

Download and View HPD

Download and View LEED

Download 3 Part CSI

  • Grout joint recommendation: TBD"
  • Tile thickness could vary based on size.
  • Larger format tiles will have a higher thickness.

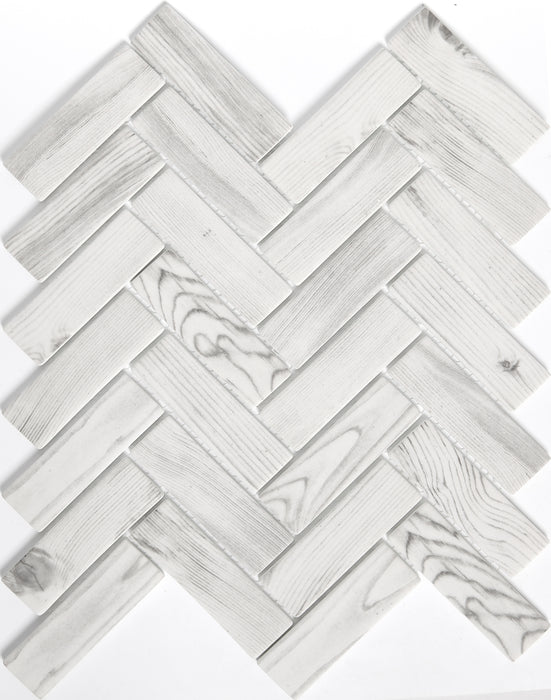

11" x 13” Herringbone on Mesh  (11.1" x 12.83")

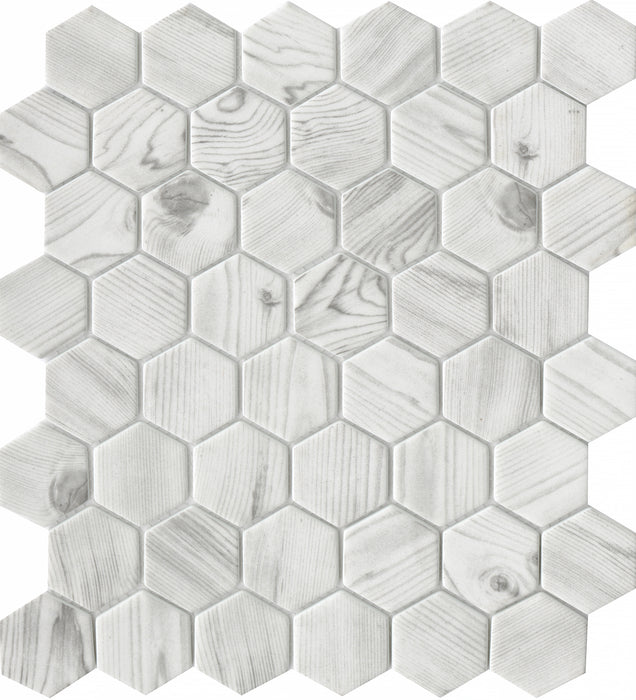

2" Hexagon on 12" x 14" Mesh  (12" x 13.57")

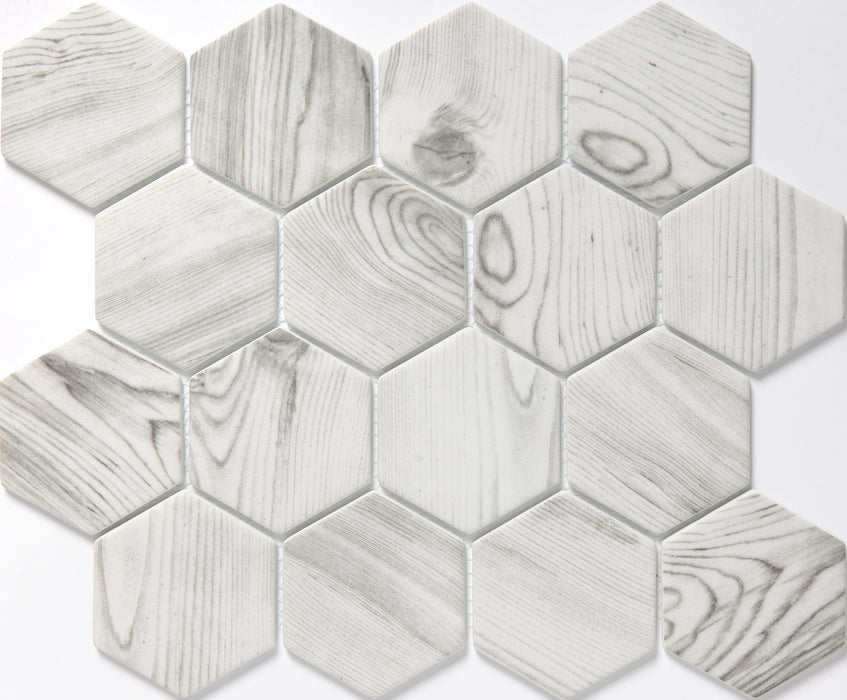

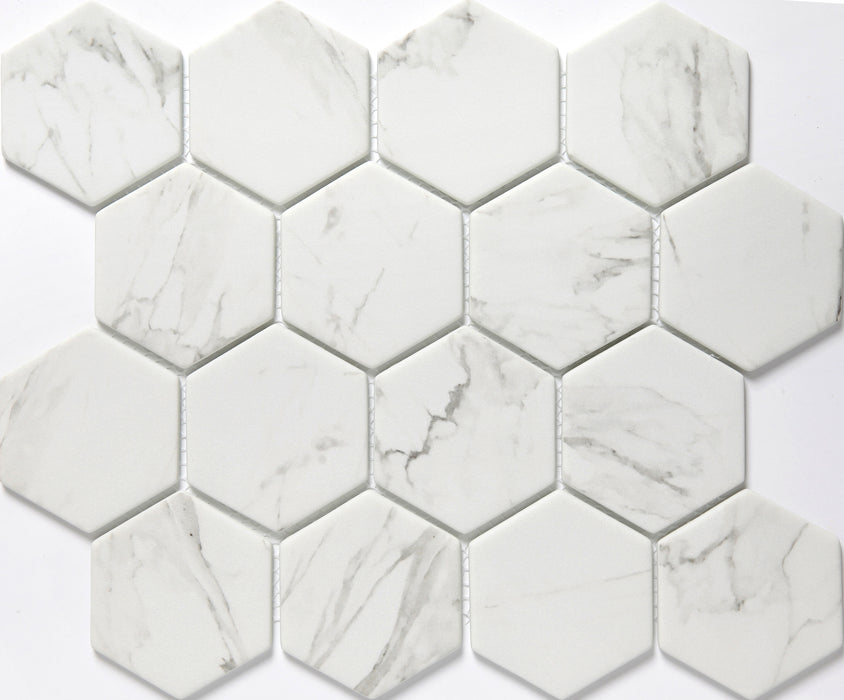

3" Hexagon on 10" x 12" Mesh  (10.16" x 12")

USAGE TYPES: YES/NO
COMMERCIAL FLOOR TBD
COMMERCIAL DINING FLOOR TBD
RESIDENTIAL FLOOR TBD
RESIDENTIAL AND COMMERCIAL WALL Yes
SHOWER WALL Yes
SHOWER FLOOR Yes
STEAM SHOWER Yes
KITCHEN COUNTER Yes
STOVE AREA Yes
FIREPLACE FACADE Yes
COVERED EXTERIOR WALL FREEZING CLIMATES Yes
COVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
UNCOVERED EXTERIOR WALL FREEZING CLIMATES Yes
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
COVERED EXTERIOR FLOOR FREEZING CLIMATES No
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES No
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES No
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES No
POOL DECK No
POOL WATERLINE Yes
INSIDE POOL Yes
SPA / HOT TUB Yes
UV/ SUN EXPOSURE SENSITIVE No

The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
