GLAZED PORCELAIN

Description

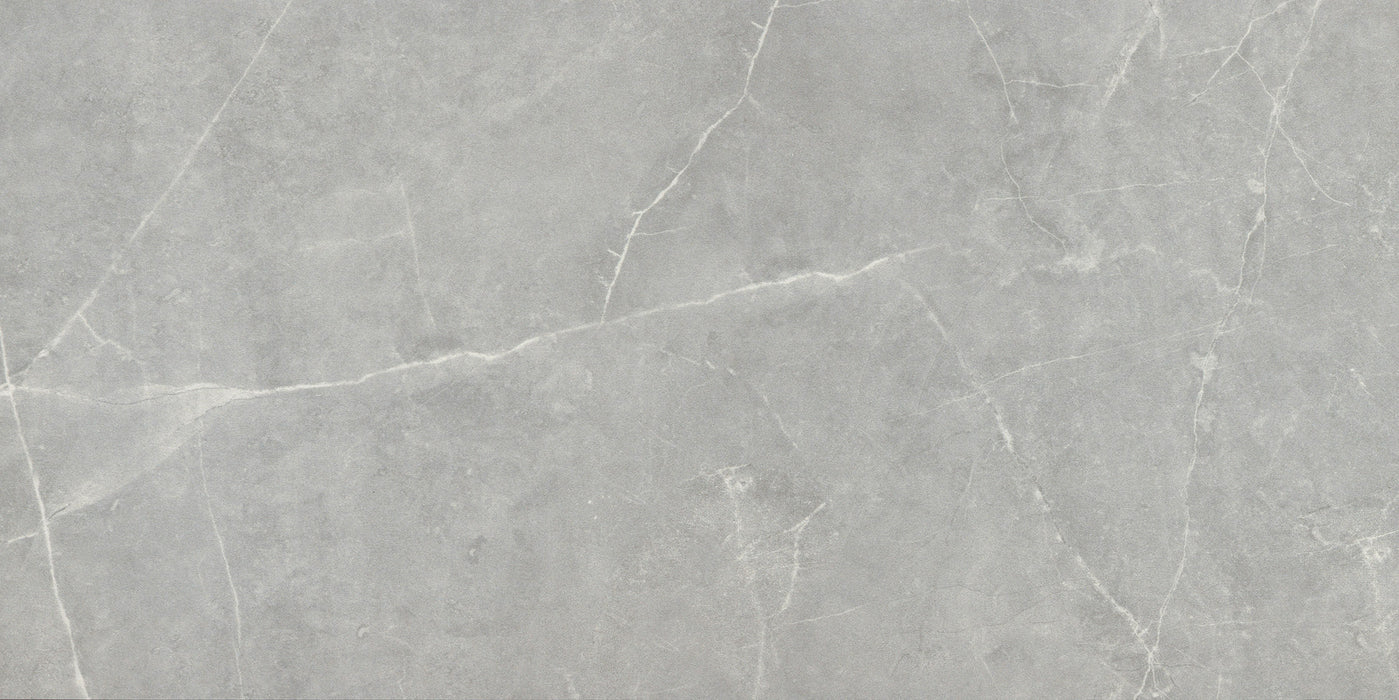

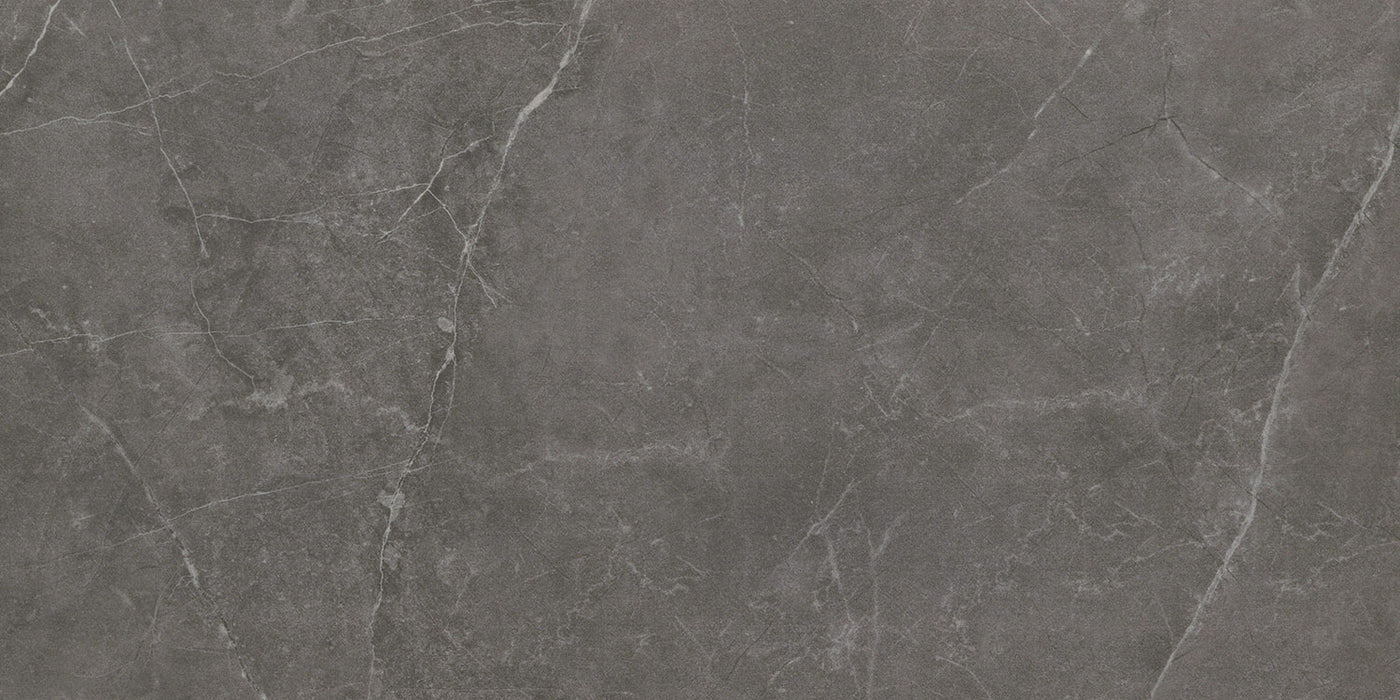

Sterlina II™ beautifully unifies the look of timeless marble with the urban touch of concrete. Available in matte and polished finish and seven colorways to achieve any desired look.

Hex size is part of Sterlina™ Series. Some colors coordinate but may not be an exact match with other sizes. All other sizes are part of the Sterlina II™ Series.

7 Colors | 5 Sizes

Technical Specifications

Nominal Size (in.)	12 x 24	24 x 24	24 x 47
Edge Detail	Rectified	Rectified	Rectified
Finish	Matte & Polished	Matte & Polished	Matte & Polished
Faces	12	12	5
Thickness (mm)*	8.4mm	9.3mm	10.2mm
Lbs/PC	7.44	15.93	35.49
Grout Joint Recommendation (in.)	1/8	1/8	1/8

Nominal Size (in.)	8 x 10 Hex***	2 x 2 Mosaic on 12 x 12 Mesh
Edge Detail	Pressed	Rectified
Finish	Matte	Matte Only
Faces	TIP**	TIP**
Thickness (mm)*	9mm	10.2mm
Lbs/PC	1.73	3.31
Grout Joint Recommendation (in.)	TIP	1/8

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

**TIP ( Testing is in progress, and results will be available soon.)

***Hex size is part of Sterlina™ Series. Some colors are not an exact match with other sizes. All other sizes are part of Sterlina II™ Series.

Testing

	MATTE	POLISHED
Breaking Strength	≥350	≥350
DCOF	≥0.55	≤0.42
Abrasion Resistance C1027	III	III
MOHS Hardness	7	Min 5
Chemical Resistance C650	Resistant	Resistant
Stain Resistance C1378	Resistant	Resistant
Water Absorption C373	≤0.5%	≤0.5%
Freeze/Thaw Resistance C371	Resistant	Resistant
Shading	V2	V2

Download 3 Part CSI

Download and View Care And Maintenance

* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.

**TIP ( Testing is in progress, and results will be available soon.)

Sizes and Trim

Hex size is part of Sterlina™ Series. Some colors are not an exact match with other sizes. All other sizes are part of Sterlina II™ Series.

Usage

USAGE TYPES:	MATTE	POLISHED
COMMERCIAL FLOOR WET*	YES	NO
COMMERCIAL FLOOR DRY	YES	YES
RESIDENTIAL FLOOR	YES	YES
RESIDENTIAL AND COMMERCIAL WALL	YES	YES
SHOWER WALL	YES	YES
RESIDENTIAL SHOWER FLOOR	YES	YES
COMMERCIAL SHOWER FLOOR	YES	NO
STEAM SHOWER	YES	YES
KITCHEN COUNTER	YES	NO
STOVE AREA	YES	YES
FIREPLACE FAÇADE	YES	YES
EXTERIOR WALL	YES	YES
EXTERIOR FLOOR	YES	NO
POOL WATERLINE	YES	YES
UV STABLE	YES	NO

* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.

**TIP ( Testing is in progress, and results will be available soon.)

The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
