SCULPTURE™

GLAZED PORCELAIN/GLAZED CERAMIC WALL TILE

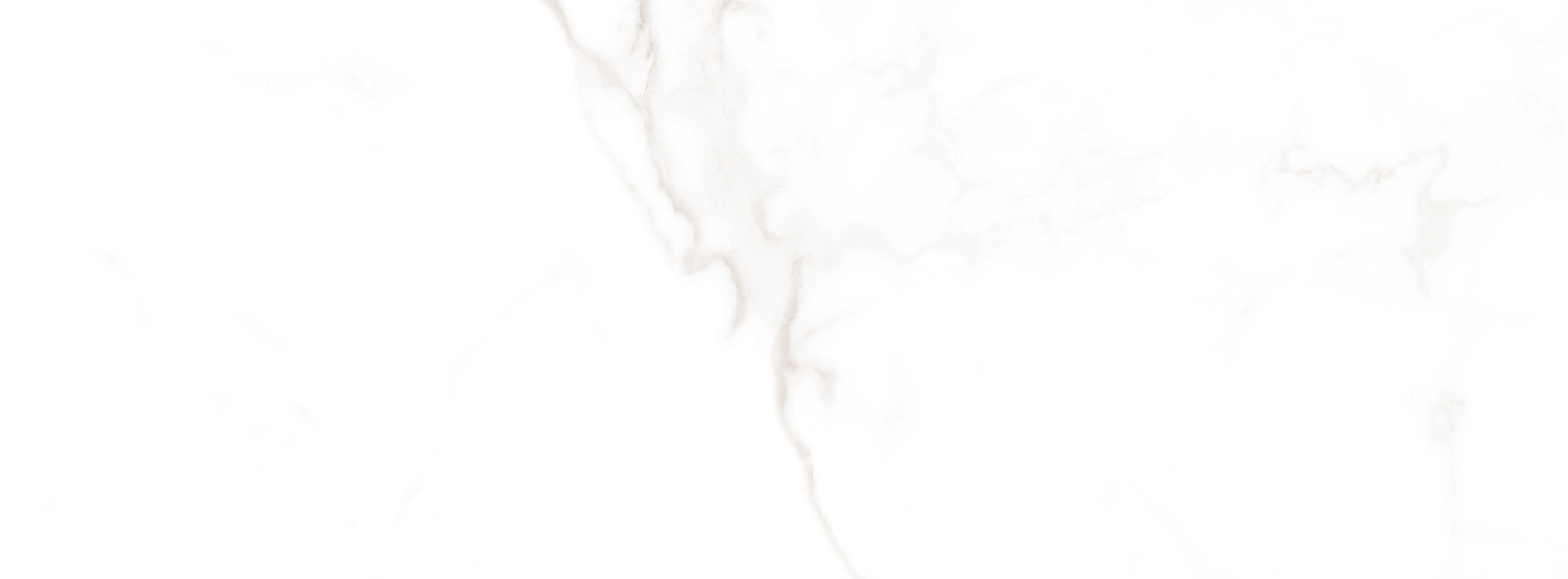

Sculpture™ is inspired by the artistic beauty of white Italian marble. Sculpture™ is available in a matte finish, perfect for floors, along with a gloss finish to coordinate with walls.

1 Color | 2 Patterns | 2 Sizes

Technical Specifications

Nominal Size (in.) 12 x 24 Floor 13 x 36 Wall
Edge Detail Pressed Pressed
Finish Satin Glossy
Faces 26 26
Thickness (in.)* 3/8 3/8
Lbs/PC 8.27 11.9
Grout Joint Width (in.) 3/16 1/16

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

Testing

Method Results
Abrasion Resistance C1027*

Floor: IV
Wall: 0

Breaking Strength C648 Floor: >500 lbf
Wall: >300 lbf
Chemical Resistance C650 Floor: Resistant
Wall: Non-Resistant
Water Absorption C373 Floor:

≤0.50

Wall: >7.00

DCOF AcuTest WET

Floor:

>.60

Wall: N/A
Freeze-Thaw Cycling C1026 Floor: Resistant
Wall: Non-Resistant
Scratch Hardness MOHS

Floor: 6

Wall: 5

Shade Variation

 V1

Pre-Consumer Recycled Content 0%
Post-Consumer Recycled Content 0%
VOC None

Download and View SDS

Download and View HPD

Download and View LEED

Download 3 Part CSI

Download and View Care and Maintenance

* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.

13”x36” (12.99”x35.83”)


12”x24” (11.89”x23.90”)

USAGE TYPES: YES/NO
COMMERCIAL FLOOR* Plain Only
RESIDENTIAL FLOOR Plain Only
RESIDENTIAL AND COMMERCIAL WALL Yes
SHOWER WALL Yes
SHOWER FLOOR Plain Only
STEAM SHOWER Yes
KITCHEN COUNTER Plain Only
STOVE AREA Yes
FIREPLACE FACADE Yes
COVERED EXTERIOR WALL FREEZING CLIMATES Plain Only
COVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
UNCOVERED EXTERIOR WALL FREEZING CLIMATES Plain Only
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES Yes
COVERED EXTERIOR FLOOR FREEZING CLIMATES Plain Only
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES Plain Only
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES Plain Only
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES Plain Only
POOL DECK Plain Only
POOL WATERLINE Plain Only
INSIDE POOL Plain Only
SPA / HOT TUB Plain Only
UV/ SUN EXPOSURE SENSITIVE No

* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.



The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.

Loading...

SKU:

F26SCULFLW1336


Name:

Color
Sculpture White
Color Name
White
View in Visualizer
