PASSION™

GLAZED PORCELAIN*
Description

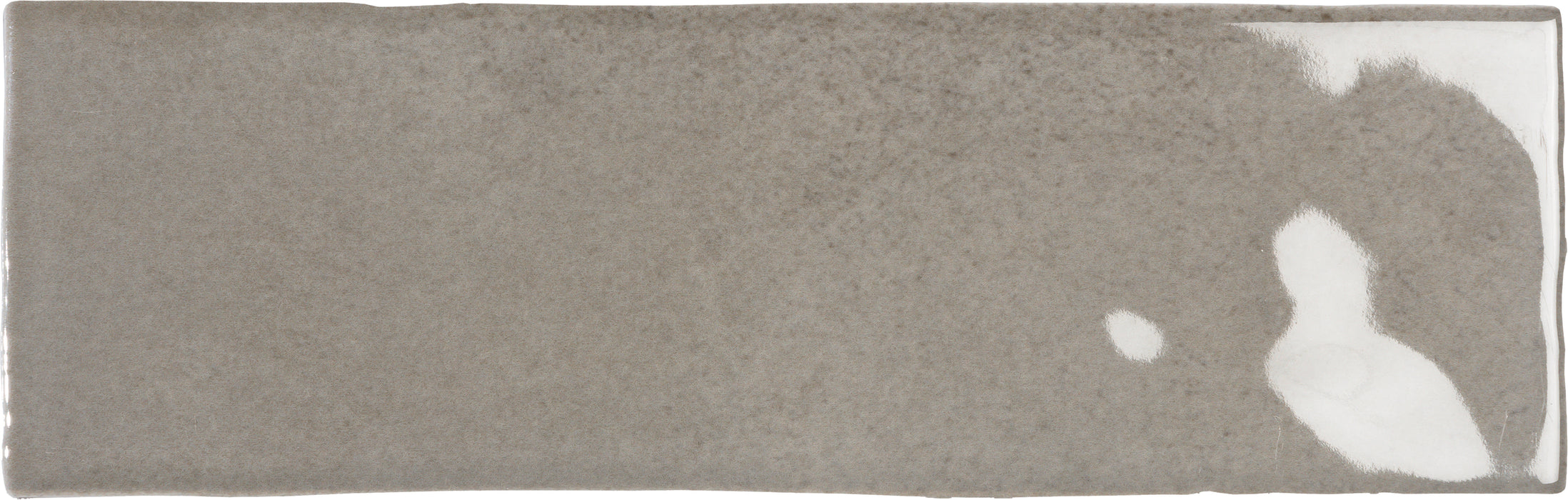

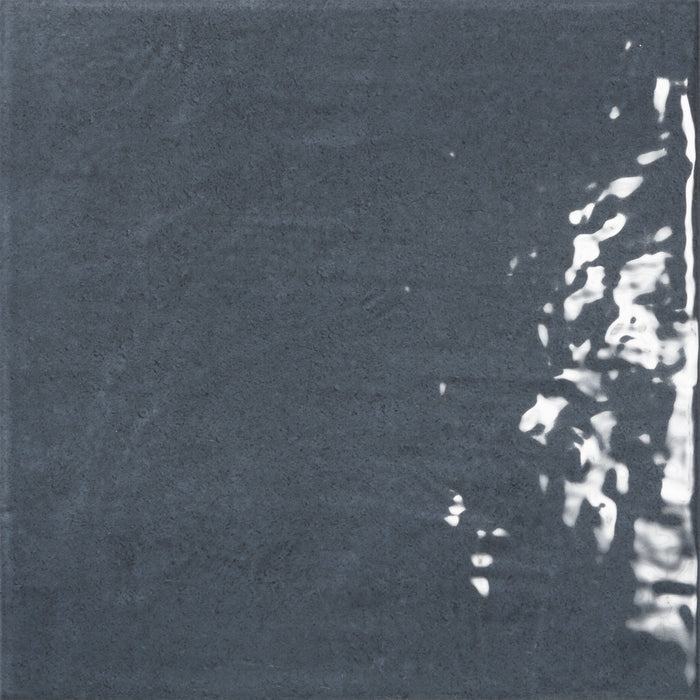

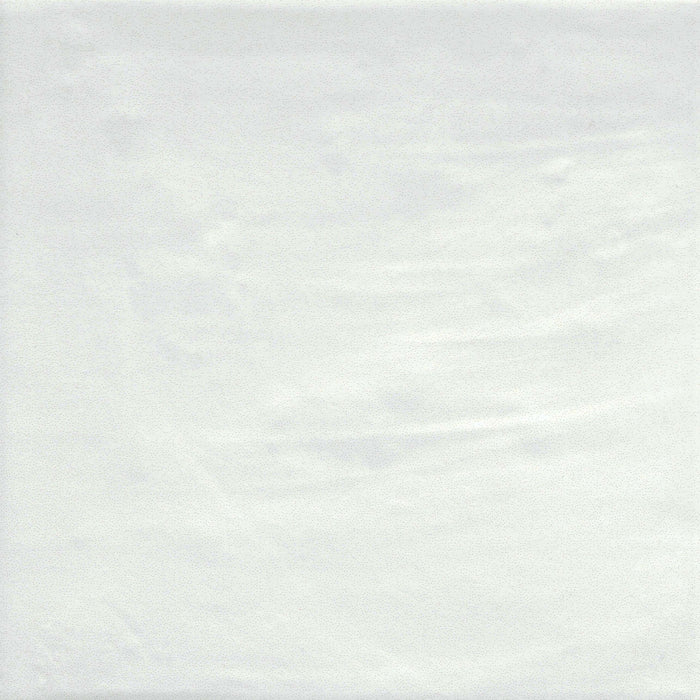

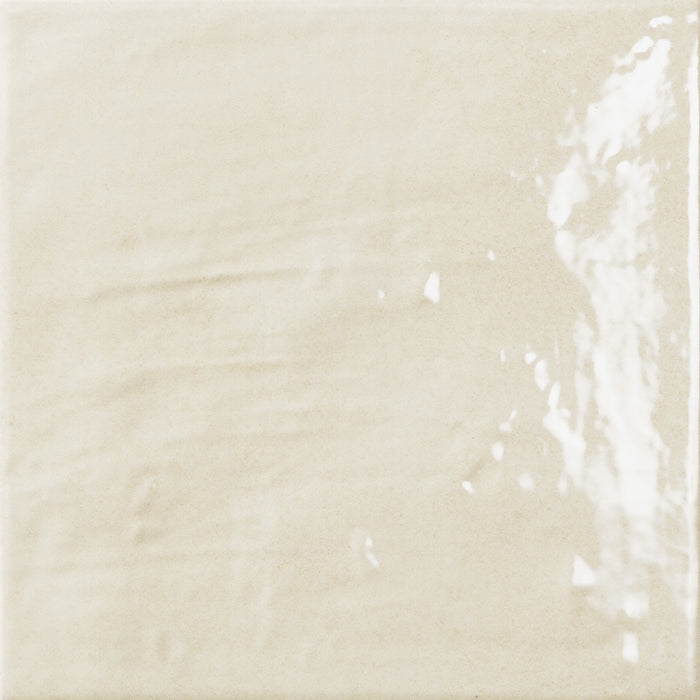

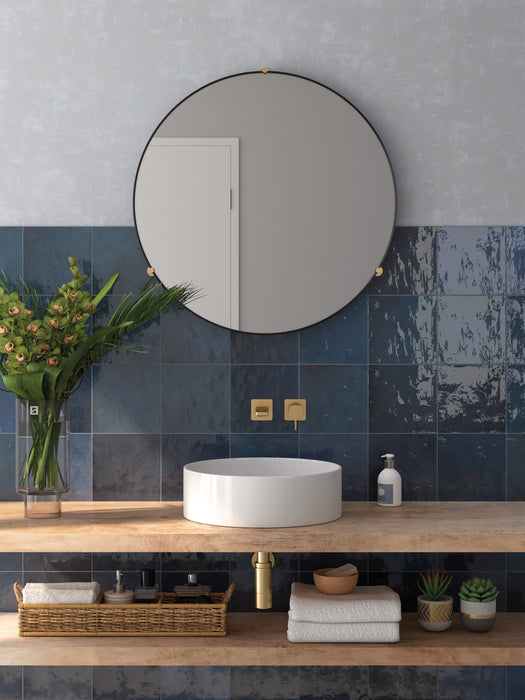

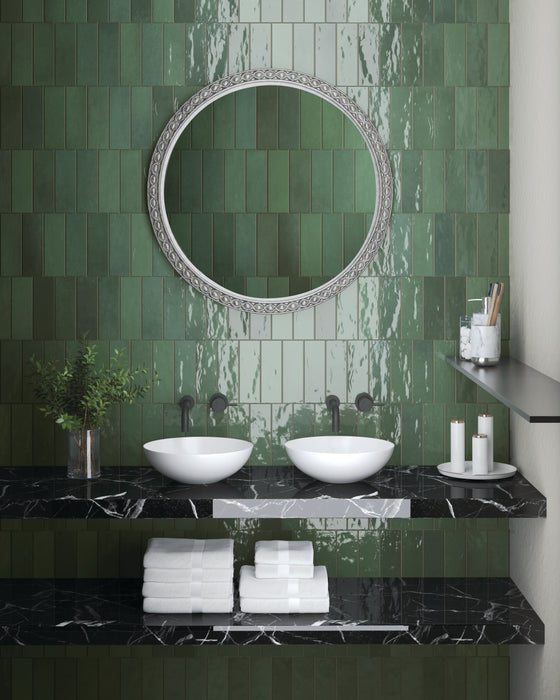

The striking colors of Passion™ will inspire breathtaking designs throughout any living space. This unique wall tile transcends traditional subway tiles into something ethereal. Colors ranging from soft White to delicate Rosa to deep Azul, Passion™ brings a truly magical element that will complement any decor.

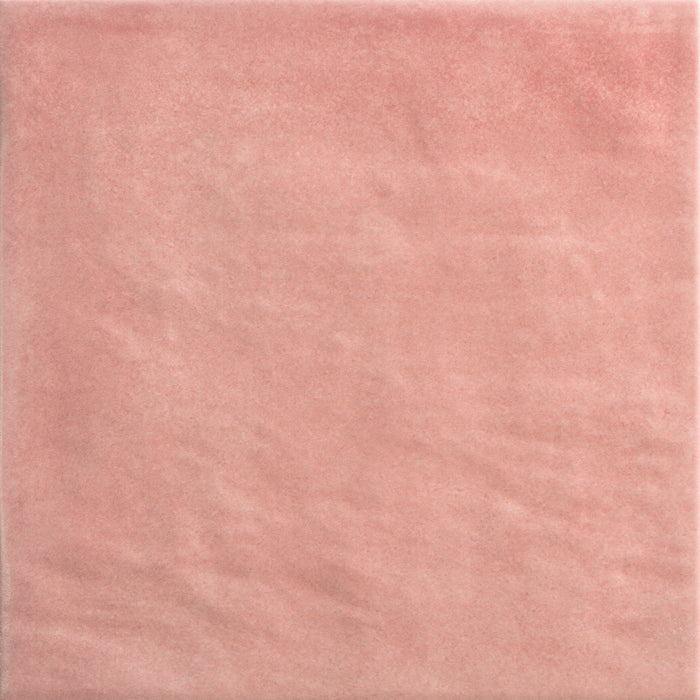

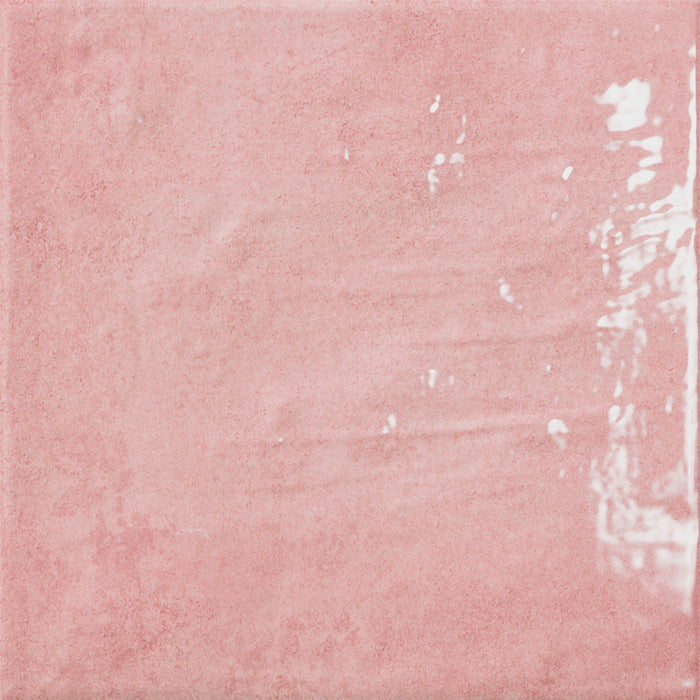

Color: ROSA
SKU W32PASSRO0308P28
Available Sizes: 3" x 8"
SKU W32PASSRO0308P28
SKU W32PASSRO0308P28
Sample Price:
Original price $3.00 - Original price $3.00
Original price
$3.00
$3.00 - $3.00
Current price $3.00

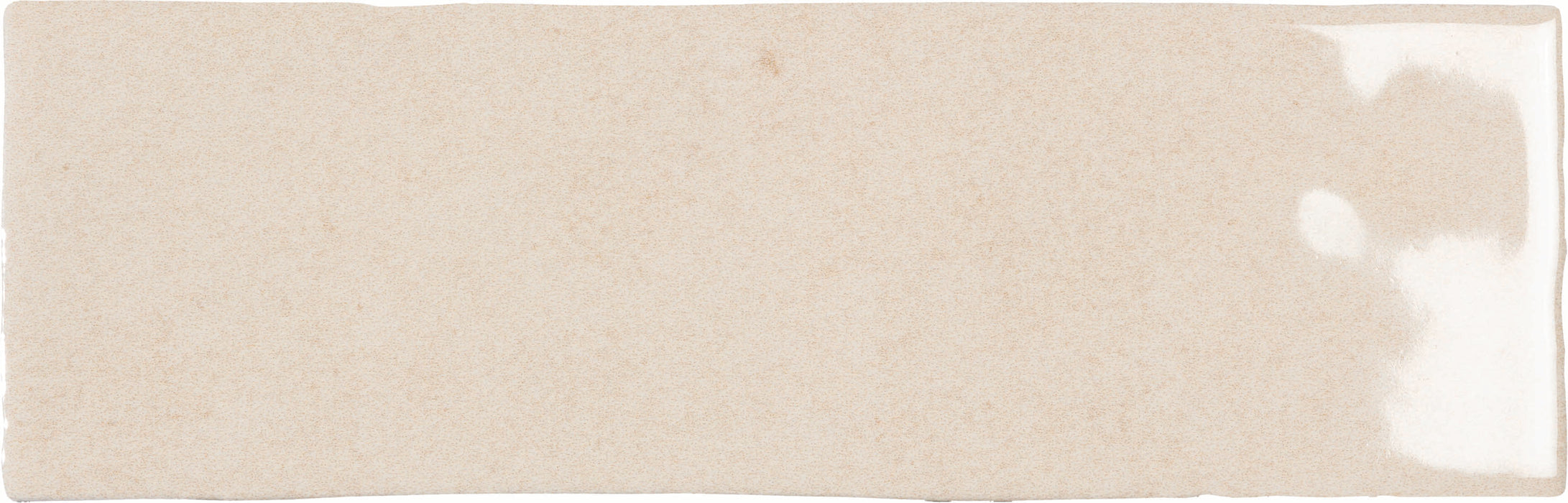

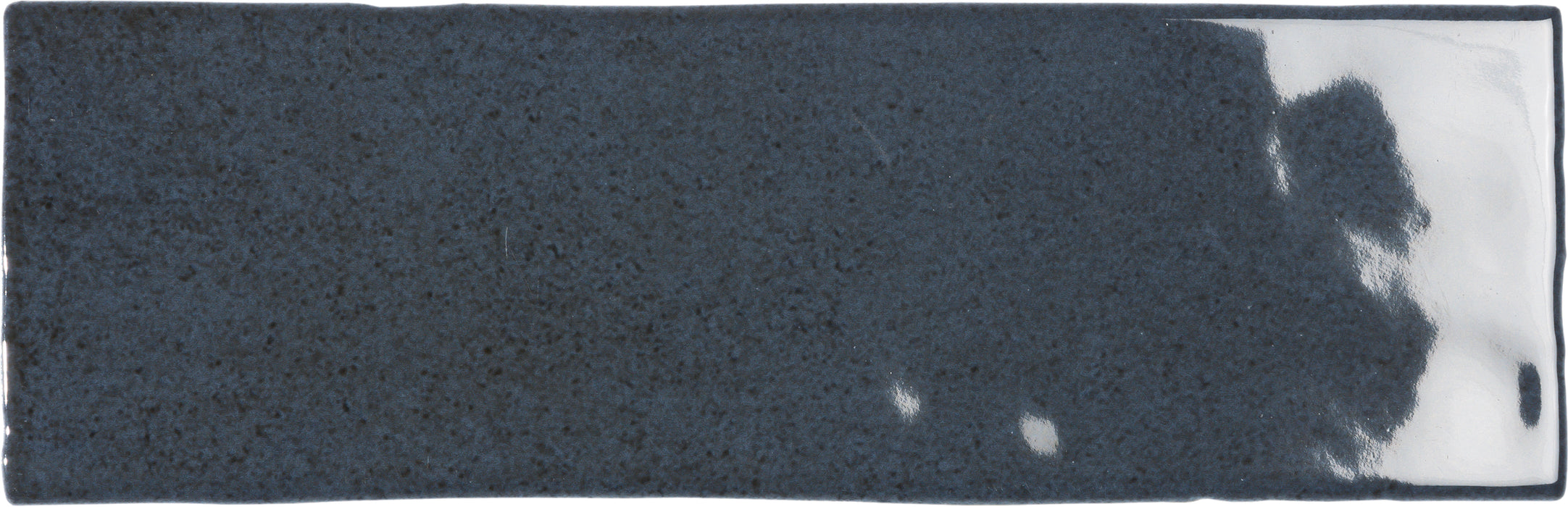

7 Colors | 2 Sizes

Technical Specifications

Nominal Size (in.) 3" x 8"; 9" x 9"
Edge Detail Pressed
Finish Glossy
Faces 30
Thickness (mm.)* 10
Lbs/PC 0.55
Grout Joint Recommendation (in.) 1/8"

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

Testing

Method 3" x 8" 9" x 9"
Abrasion Resistance C1027 III Glossy: III
Matte: IV
Breaking Strength C648 >250 >350
Chemical Resistance C650 RESISTANT RESISTANT
Water Absorption C373 <1% <3.0%
DCOF AcuTest WET <0.42 <0.42
Freeze-Thaw Cycling C1026 TIP TIP
Scratch Hardness MOHS  7 Glossy: 6
Matte: 7

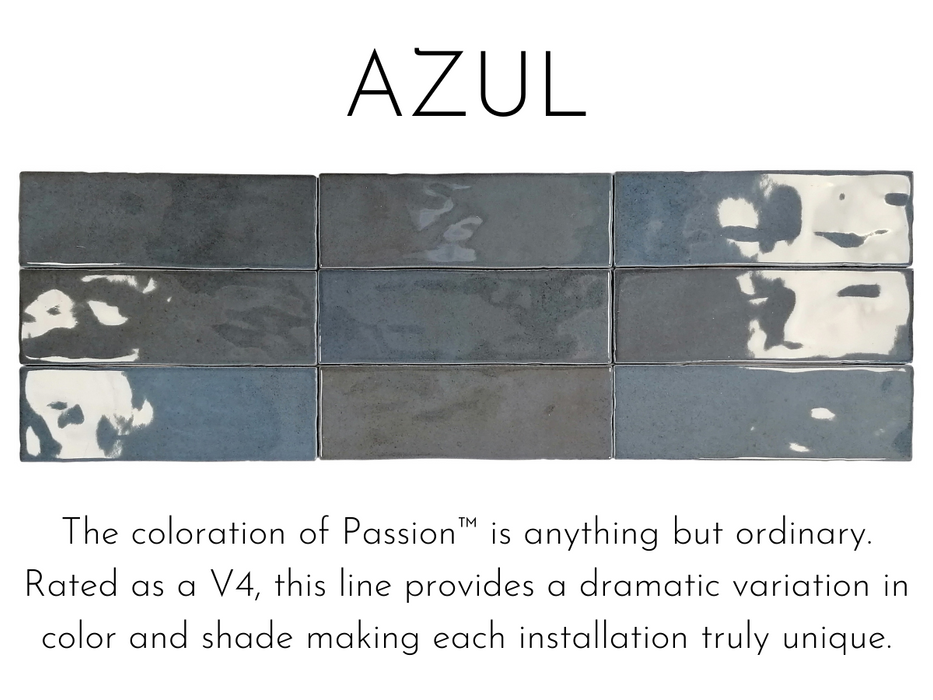

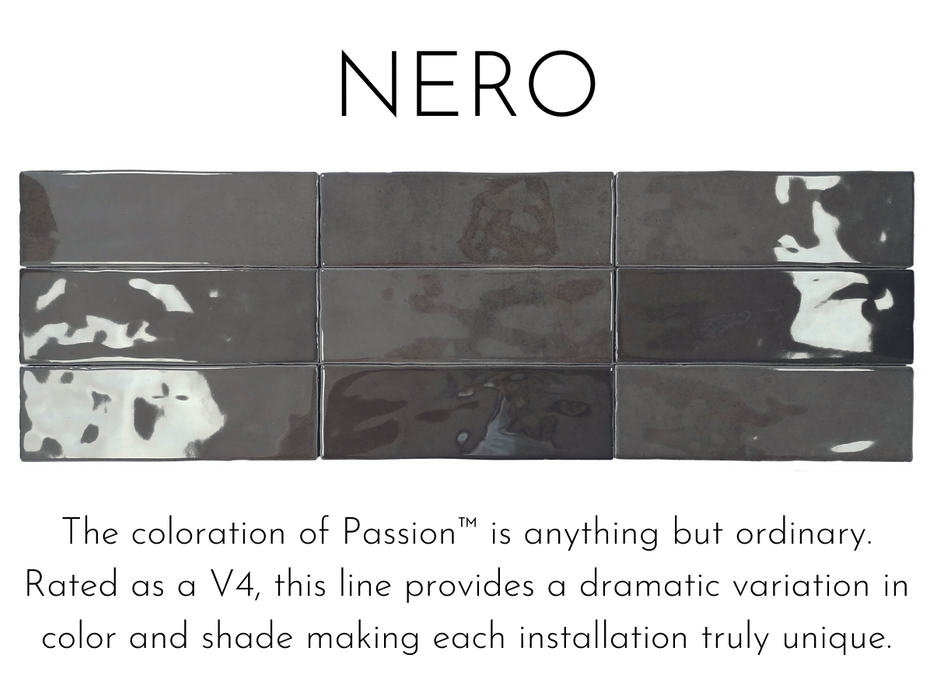

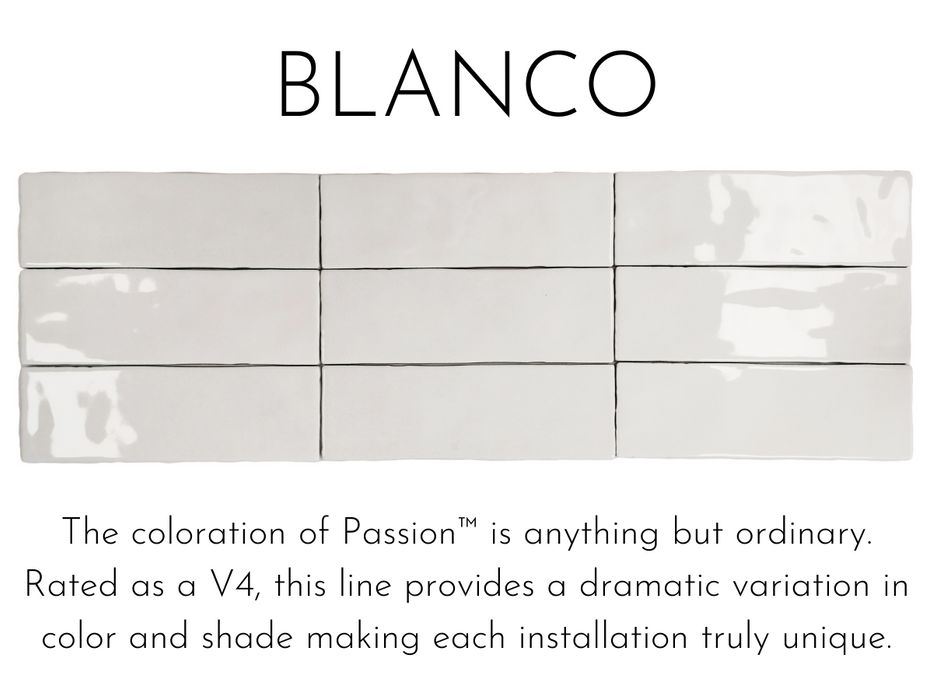

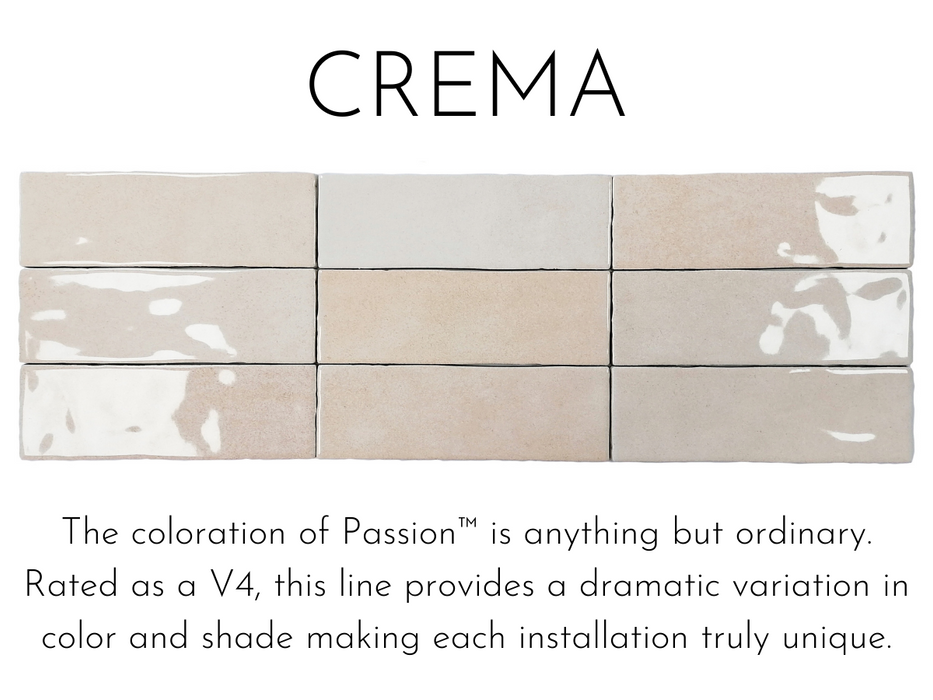

Shade Variation V4 V4
Pre-Consumer Recycled Content 0% TIP
Post-Consumer Recycled Content 0% TIP
VOC None TIP

*Frost Resistant Tile. This product is not classified as true porcelain as the water absorption falls within 0.5% - 3%. However, this product is able to be used almost anywhere porcelain tile is used.

Download 3 Part CSI

Download and View Care and Maintenance

  • Grout joint recommendation: 1/8”
  • Tile thickness could vary based on size.
  • Larger format tiles will have a higher thickness.
Sizes and Trim

Usage

USAGE TYPES: YES/NO
COMMERCIAL FLOOR* NO
RESIDENTIAL FLOOR YES
RESIDENTIAL AND COMMERCIAL WALL YES
SHOWER WALL YES
SHOWER FLOOR NO
STEAM SHOWER YES
KITCHEN COUNTER YES
STOVE AREA YES
FIREPLACE FACADE YES
EXTERIOR WALL YES
EXTERIOR FLOOR NO
POOL DECK  9" x 9" Matte Only
POOL WATERLINE YES
INSIDE POOL NO
SPA / HOT TUB YES
UV/ SUN STABLE YES

*  Emser recommends a .50 or greater DCOF for Commercial Dining Floors.

 The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
