Modan™ porcelain tile is a study in the power of contrasts – smooth and concave, rough and matte, light and shadow. Simple in concept with an appreciation for modern design, Modan calls to the senses, while enhancing any space where this unique tile lives. Four rich colors open the door to possibility.
4 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 12 x 12 |
| Edge Detail | Pressed |
| Finish | Matte |
| Faces | TIP |
| Thickness (mm.)* | 11 |
| Lbs/PC | 3.75 |
| Grout Joint Recommendation (in.) | TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Test Method | Results |
| Freeze-Thaw Resistance C1026 | Resistant |
| Breaking Strength C648 | >325 LBF |
| Chemical Resistance C650* | RESISTANT |
| Water Absorption C373 | <3.0% |
|
DCOF AcuTest WET |
>0.60 |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
V2 |
| Stain Resistance C1378* | NON-RESISTANT |
*It is recommended that the unglazed products be sealed to maintain stain or chemical resistance over time. Always consult a professional for proper installation and maintenance.
2" X 2" on 12”x12” Mosaic Mesh
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | NO |
| COMMERCIAL FLOOR DRY * | NO |
| RESIDENTIAL FLOOR | NO |
| RESIDENTIAL AND COMMERCIAL WALL |
YES |
| SHOWER WALL | YES |
| RESIDENTIAL SHOWER FLOOR |
NO |
| COMMERCIAL SHOWER FLOOR |
NO |
| STEAM SHOWER |
YES |
| KITCHEN COUNTER |
YES |
| STOVE AREA |
TIP |
| FIREPLACE FAÇADE | TIP |
| EXTERIOR WALL | TIP |
| EXTERIOR FLOOR (NOT POOL) | NO |
| POOL WATERLINE |
YES |
| UV STABLE |
YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
W50MODARU1212MO2M
Modan™ porcelain tile is a study in the power of contrasts – smooth and concave, rough and matte, light and shadow. Simple in concept with an appreciation for modern design, Modan calls to the senses, while enhancing any space where this unique tile lives. Four rich colors open the door to possibility.
4 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 12 x 12 |
| Edge Detail | Pressed |
| Finish | Matte |
| Faces | TIP |
| Thickness (mm.)* | 11 |
| Lbs/PC | 3.75 |
| Grout Joint Recommendation (in.) | TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Test Method | Results |
| Freeze-Thaw Resistance C1026 | Resistant |
| Breaking Strength C648 | >325 LBF |
| Chemical Resistance C650* | RESISTANT |
| Water Absorption C373 | <3.0% |
|
DCOF AcuTest WET |
>0.60 |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
V2 |
| Stain Resistance C1378* | NON-RESISTANT |
*It is recommended that the unglazed products be sealed to maintain stain or chemical resistance over time. Always consult a professional for proper installation and maintenance.
Download and View Care and Maintenance
2" X 2" on 12”x12” Mosaic Mesh
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | NO |
| COMMERCIAL FLOOR DRY * | NO |
| RESIDENTIAL FLOOR | NO |
| RESIDENTIAL AND COMMERCIAL WALL |
YES |
| SHOWER WALL | YES |
| RESIDENTIAL SHOWER FLOOR |
NO |
| COMMERCIAL SHOWER FLOOR |
NO |
| STEAM SHOWER |
YES |
| KITCHEN COUNTER |
YES |
| STOVE AREA |
TIP |
| FIREPLACE FAÇADE | TIP |
| EXTERIOR WALL | TIP |
| EXTERIOR FLOOR (NOT POOL) | NO |
| POOL WATERLINE |
YES |
| UV STABLE |
YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
Rust / 2" X 2" Mesh Mosaic / Rust
W50MODARU1212MO2M

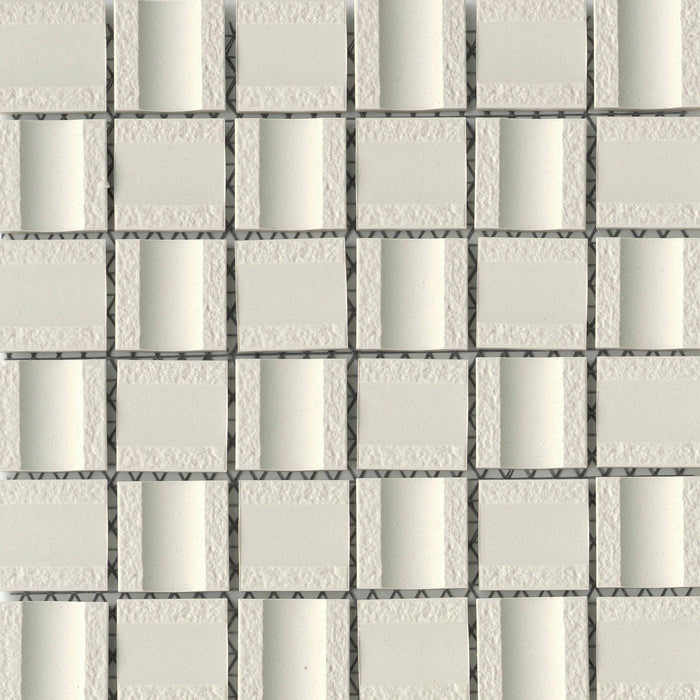

White / 2" X 2" Mesh Mosaic / White
W50MODAWH1212MO2M

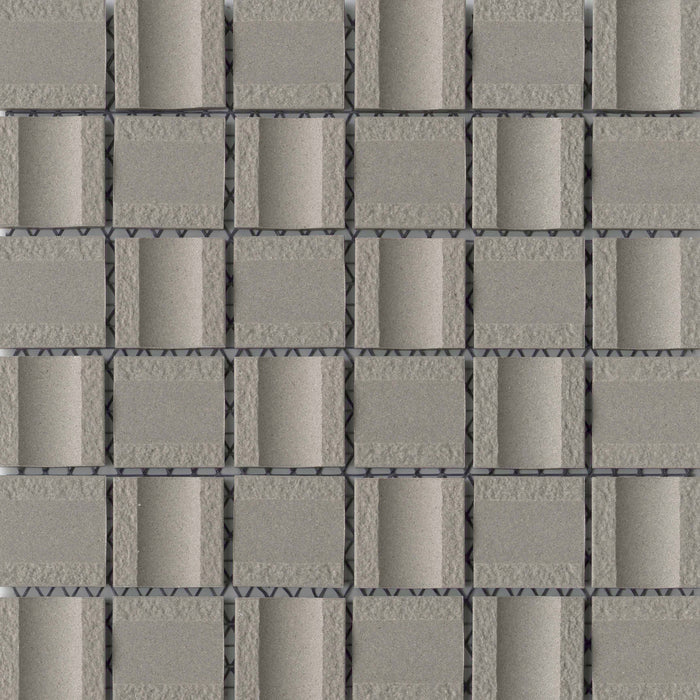

Silver / 2" X 2" Mesh Mosaic / Silver
W50MODASI1212MO2M

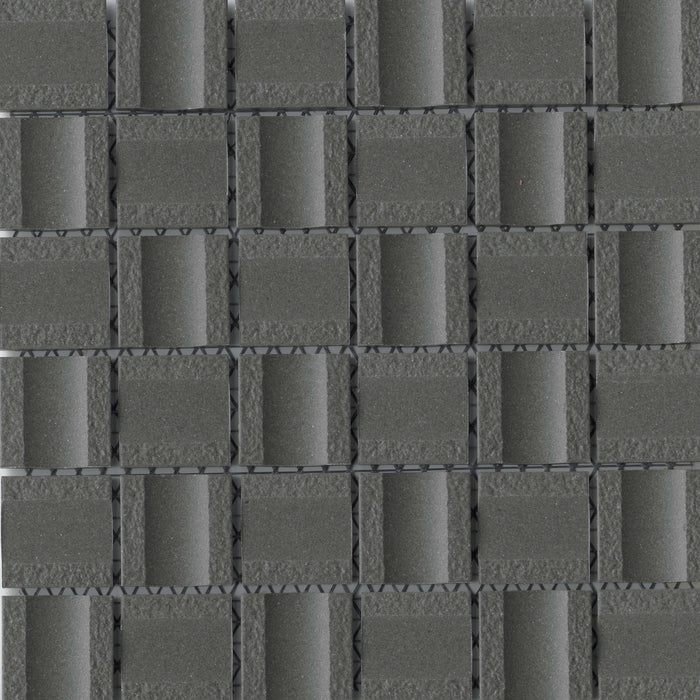

Black / 2" X 2" Mesh Mosaic / Black
W50MODABK1212MO2M
