Esplanade™ features the appealing look of Travertine in a glazed porcelain, large format size in four trendy colors.
4 Colors | 2 Sizes
Technical Specifications
| Nominal Size (in.) | 17 x 35 | 12 x 24 | 11 x 23 |
| Edge Detail | Pressed | Pressed | Rectified |
| Finish | Matte | Matte | Polished |
| Faces | 5 | 16 | 16 |
| Thickness (in.)* | 3/8 | 3/8 | 3/8 |
| Lbs/PC | 20.26 |
8.69 | 8.15 |
| Grout Joint Recommendation (in.) | 3/16 | 3/16 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
**TIP ( Testing is in progress, and results will be available soon.)
Testing
All Test Results below are for Satin Finish. Testing for Polished is in Progress.
| Method | Results |
| Abrasion Resistance C1027 | III |
| Breaking Strength C648 | >600 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | ≤0.50 |
|
DCOF AcuTest WET |
≥ .60 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
V2 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
12”x 24” (11.81”x 23.62”)
11”x 23” Polished
3”x12” Floor SBN
3”x11” Floor SBN Polished
12”x 12” Mosaic Mesh (11.81”x 11.81”)
All Usage Results below are for Satin Finish. Usage Testing for Polished Finish is in Progress.
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| SHOWER FLOOR | Yes |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| POOL DECK | Yes |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
F02ESPLTR0311SBP
Esplanade™ features the appealing look of Travertine in a glazed porcelain, large format size in four trendy colors.
4 Colors | 2 Sizes
Technical Specifications
| Nominal Size (in.) | 17 x 35 | 12 x 24 | 11 x 23 |
| Edge Detail | Pressed | Pressed | Rectified |
| Finish | Matte | Matte | Polished |
| Faces | 5 | 16 | 16 |
| Thickness (in.)* | 3/8 | 3/8 | 3/8 |
| Lbs/PC | 20.26 |
8.69 | 8.15 |
| Grout Joint Recommendation (in.) | 3/16 | 3/16 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
**TIP ( Testing is in progress, and results will be available soon.)
Testing
All Test Results below are for Satin Finish. Testing for Polished is in Progress.
| Method | Results |
| Abrasion Resistance C1027 | III |
| Breaking Strength C648 | >600 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | ≤0.50 |
|
DCOF AcuTest WET |
≥ .60 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
V2 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care and Maintenance
12”x 24” (11.81”x 23.62”)
11”x 23” Polished
3”x12” Floor SBN
3”x11” Floor SBN Polished
12”x 12” Mosaic Mesh (11.81”x 11.81”)
All Usage Results below are for Satin Finish. Usage Testing for Polished Finish is in Progress.
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| SHOWER FLOOR | Yes |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| POOL DECK | Yes |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
Esplanade Trail / 3" X 11" SBN Polished / Gray
F02ESPLTR0311SBP
Esplanade Trail / 11" X 23" Polished / Gray
F02ESPLTR1123P
Esplanade Pass / 3" X 11" SBN Polished / Taupe
F02ESPLPA0311SBP
Esplanade Pass / 11" X 23" Polished / Taupe
F02ESPLPA1123P
Esplanade Hall / 3" X 11" SBN Polished / Beige
F02ESPLHA0311SBP
Esplanade Hall / 11" X 23" Polished / Beige
F02ESPLHA1123P
Esplanade Alley / 3" X 11" SBN Polished / White
F02ESPLAL0311SBP

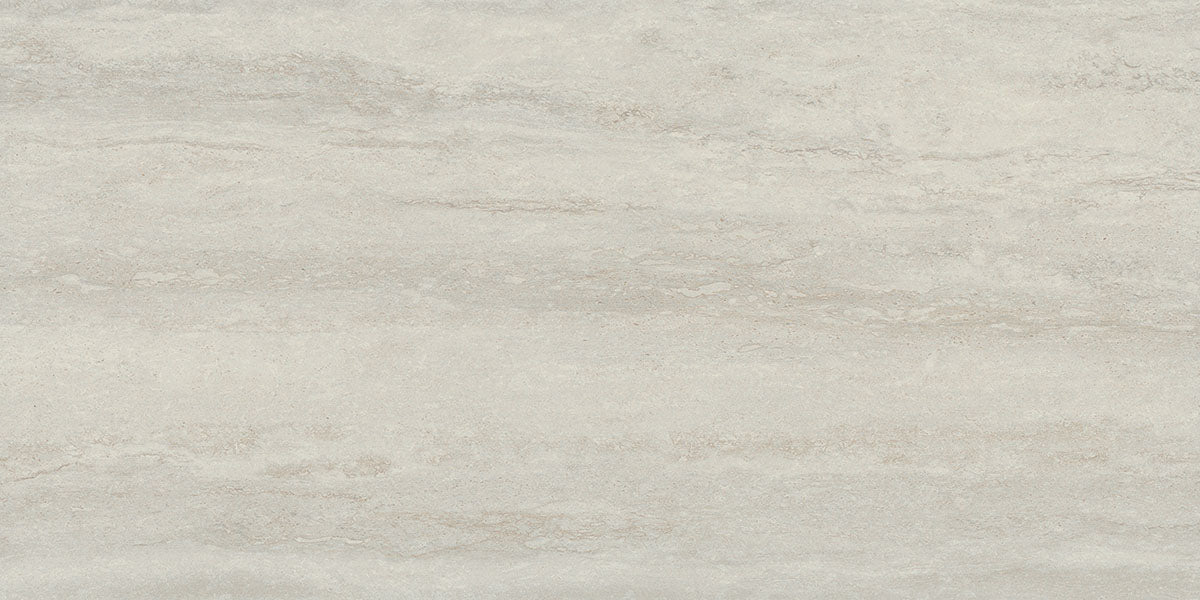

Esplanade Alley / 11" X 23" Polished / White
F02ESPLAL1123P

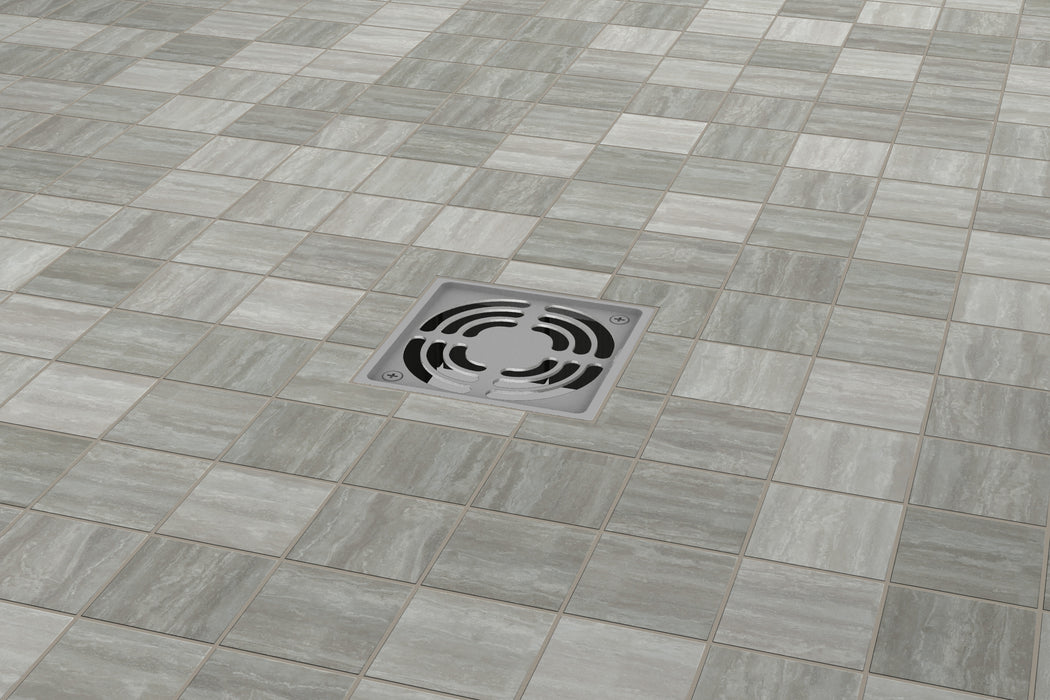

Esplanade Trail / 2"x2" Mesh Mosaic / Gray
Esplanade Trail / 3" X 12" SBN / Gray
F02ESPLTR0312SB

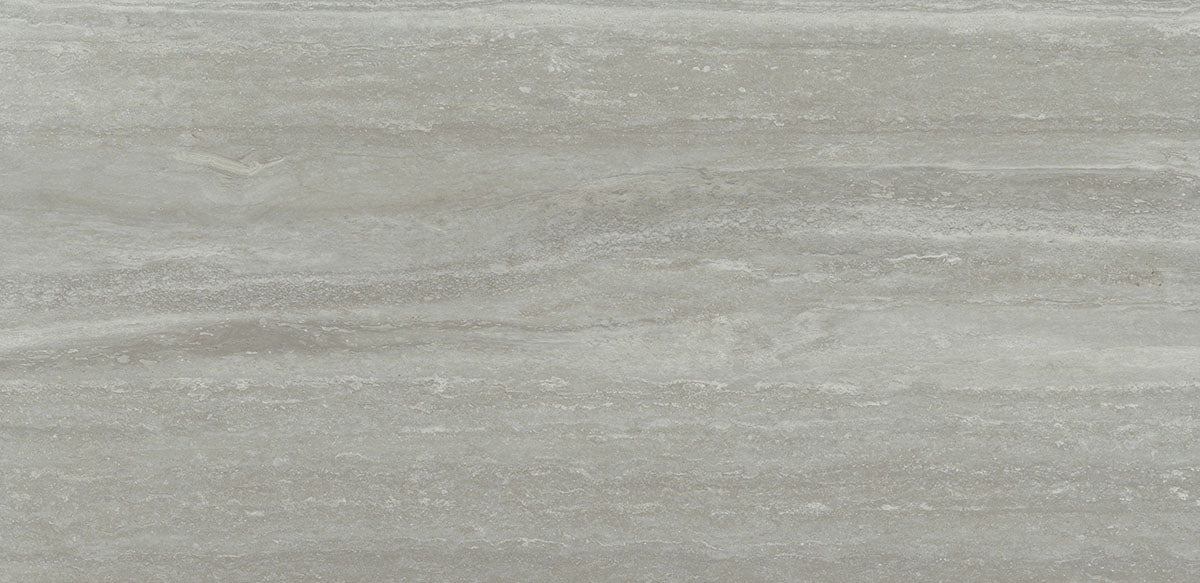

Esplanade Trail / 17" X 35" / Gray
F02ESPLTR1735

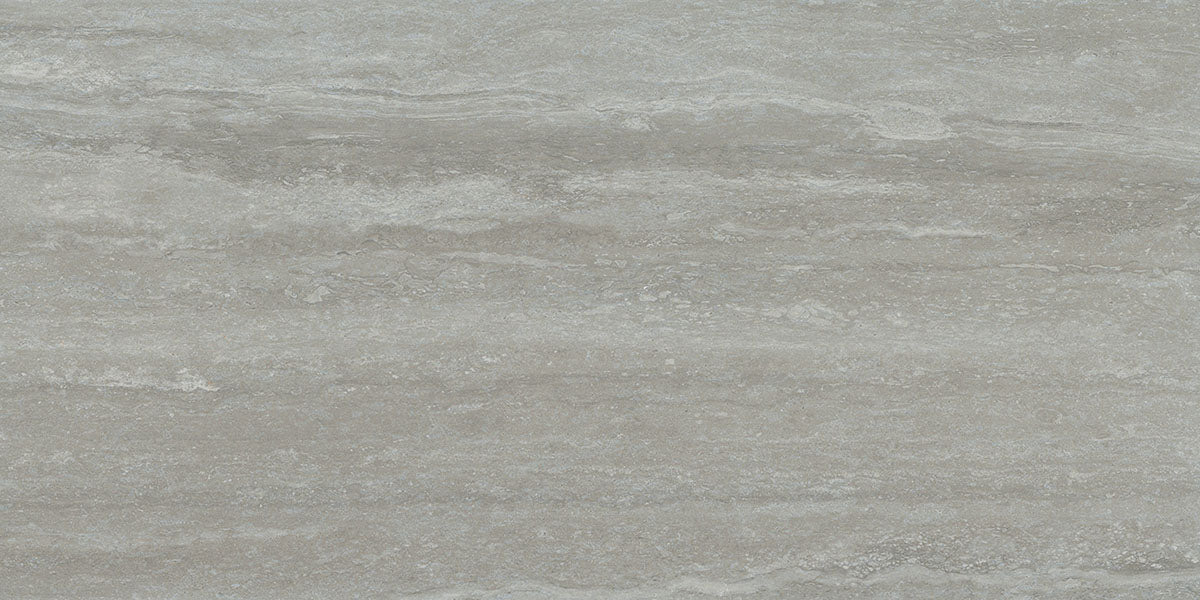

Esplanade Trail / 12" X 24" / Gray
F02ESPLTR1224
Esplanade Pass / 2"x2" Mesh Mosaic / Taupe
Esplanade Pass / 3" X 12" SBN / Taupe
F02ESPLPA0312SB
Esplanade Pass / 17" X 35" / Taupe
F02ESPLPA1735
Esplanade Pass / 12" X 24" / Taupe
F02ESPLPA1224
Esplanade Hall / 2"x2" Mesh Mosaic / Beige
Esplanade Hall / 3" X 12" SBN / Beige
F02ESPLHA0312SB
Esplanade Hall / 17" X 35" / Beige
F02ESPLHA1735
Esplanade Hall / 12" X 24" / Beige
F02ESPLHA1224
Esplanade Alley / 2"x2" Mesh Mosaic / White
Esplanade Alley / 3" X 12" SBN / White
F02ESPLAL0312SB
Esplanade Alley / 17" X 35" / White
F02ESPLAL1735

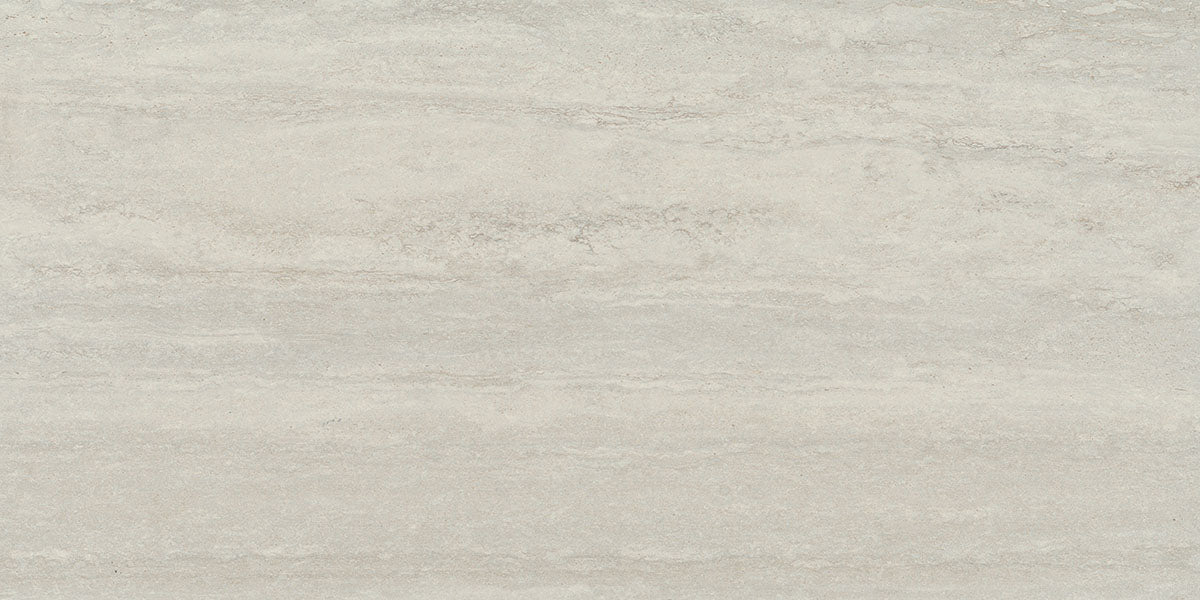

Esplanade Alley / 12" X 24" / White
F02ESPLAL1224
