CONNECT™
Glazed Porcelain
Description

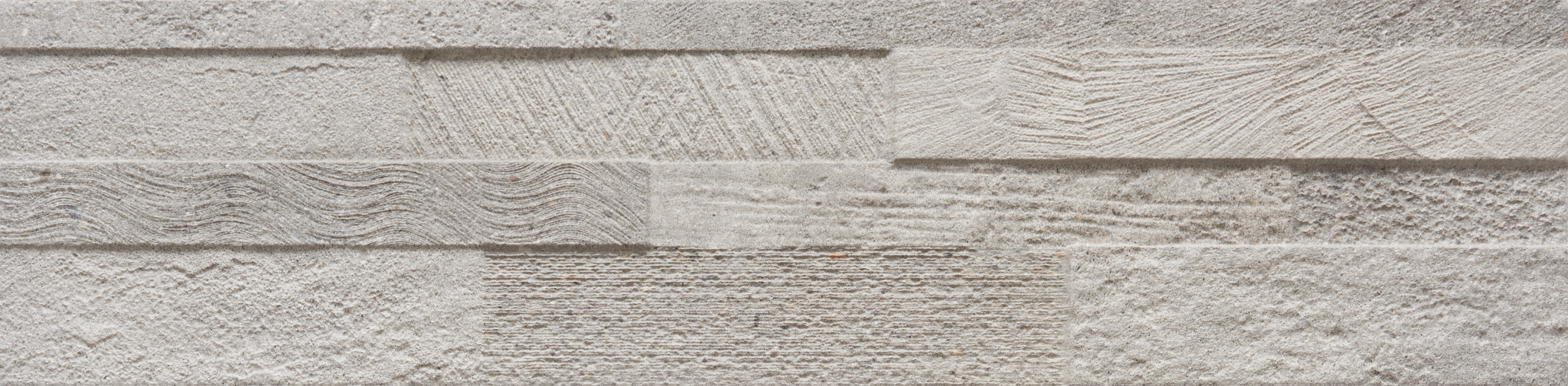

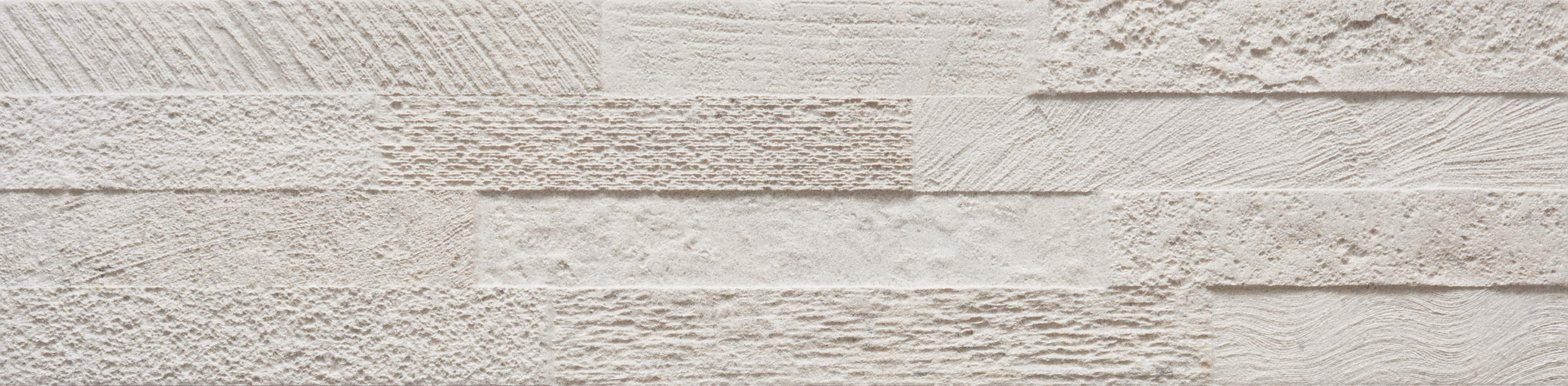

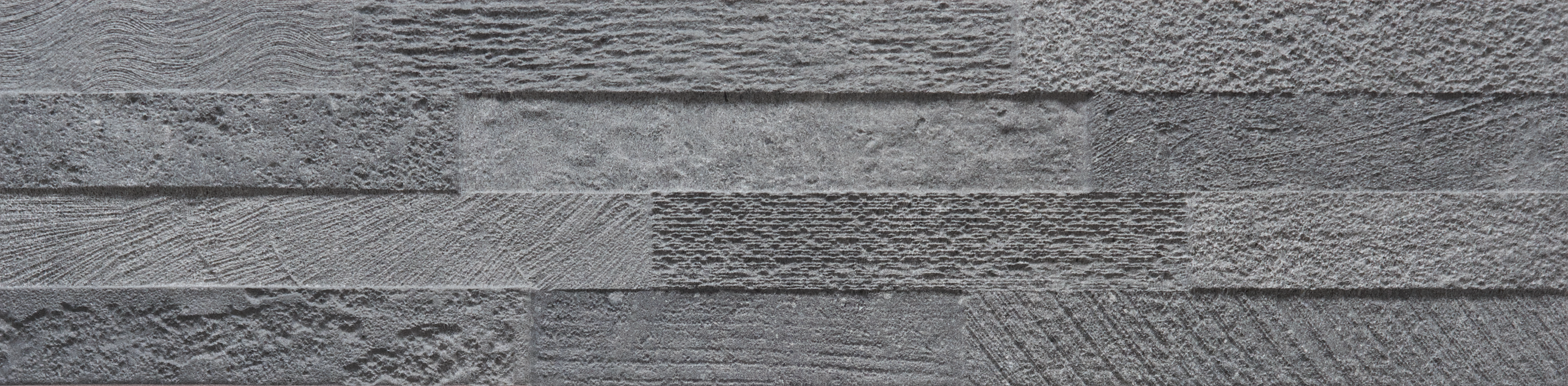

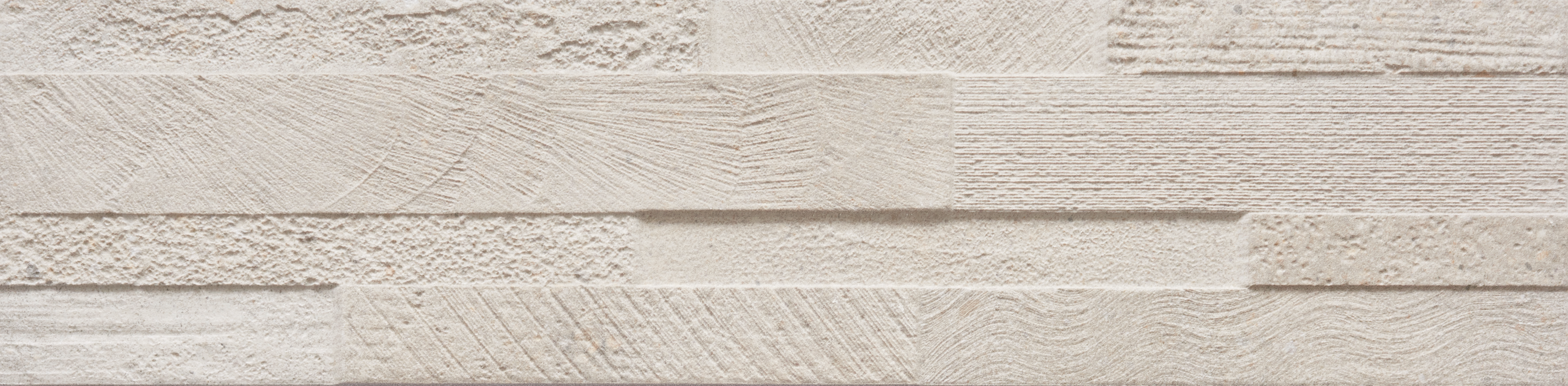

The unique design of Connect™ provides the appearance of stacked stone in a durable glazed porcelain tile. The texture and variation found on this tile perfectly captures the beautiful characteristics of natural stone. The warm to cool colorways provide a sense of balance to any application.
4 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 6 x 24 |
| Edge Detail | Pressed |
| Finish | Matte / Satin |
| Faces | 215 |
| Thickness (mm.)* | 11 |
| Grout Joint Recommendation (in.) | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027* | TIP |
| Breaking Strength C648 |
> 350 |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | < 0.50 |
| DCOF AcuTest WET | > 0.42 |
| Scratch Hardness MOHS | 6 |
| Shade Variation | V3 |
| VOC | 0% |
Download and View Care And Maintenance
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | NO |

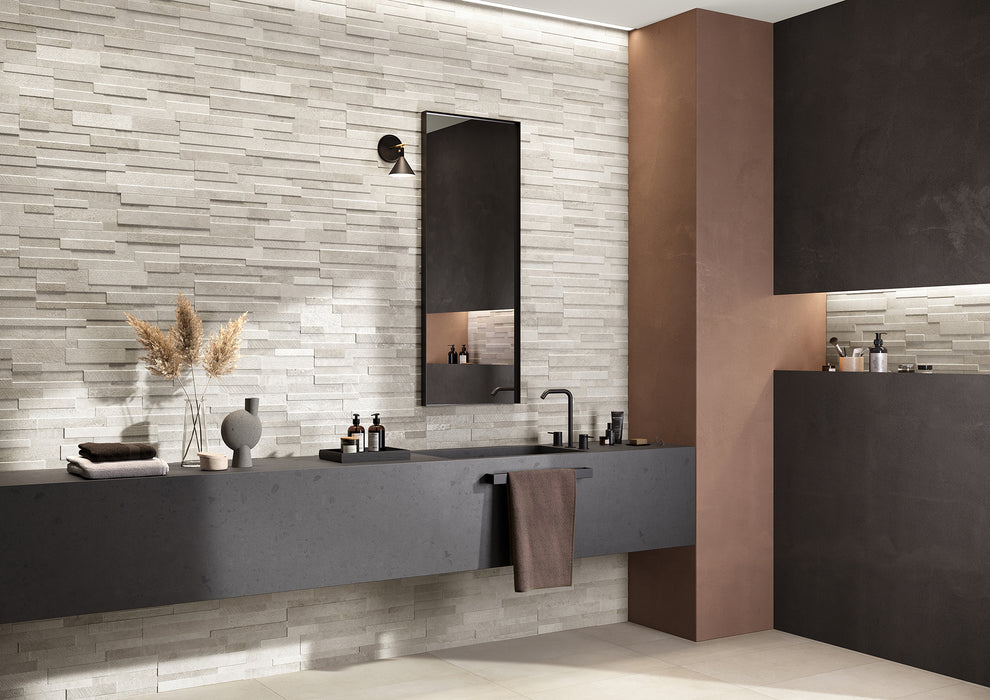

| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| SHOWER FLOOR | NO |
| STEAM SHOWER | YES |
| KITCHEN COUNTER | NO |

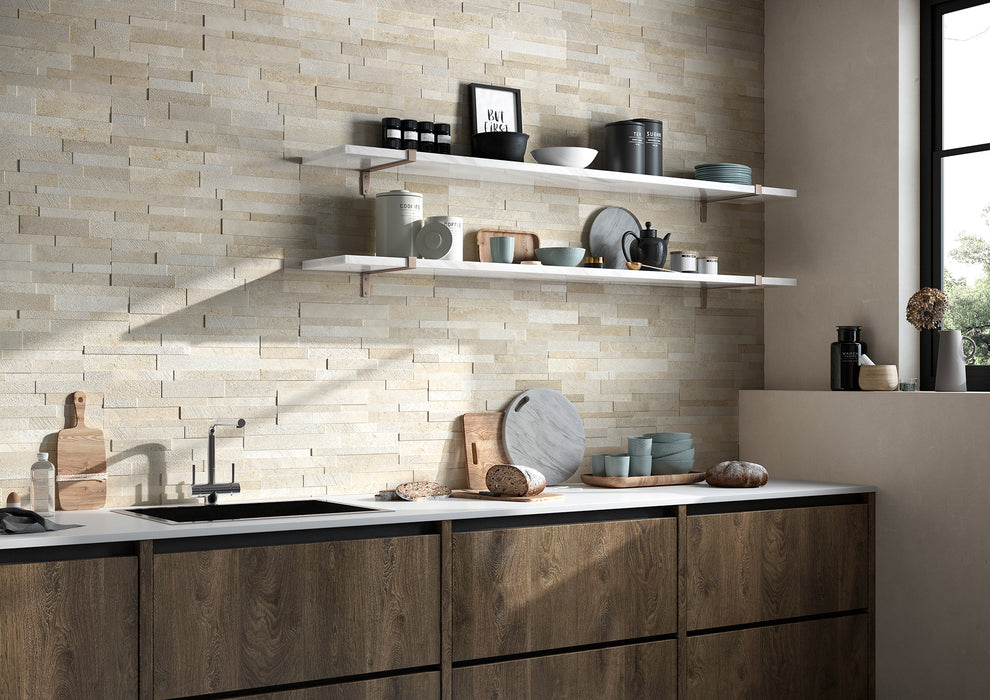

| STOVE AREA | YES |
| FIREPLACE FACADE | YES |
| COVERED EXTERIOR WALL FREEZING CLIMATES | YES |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | YES |

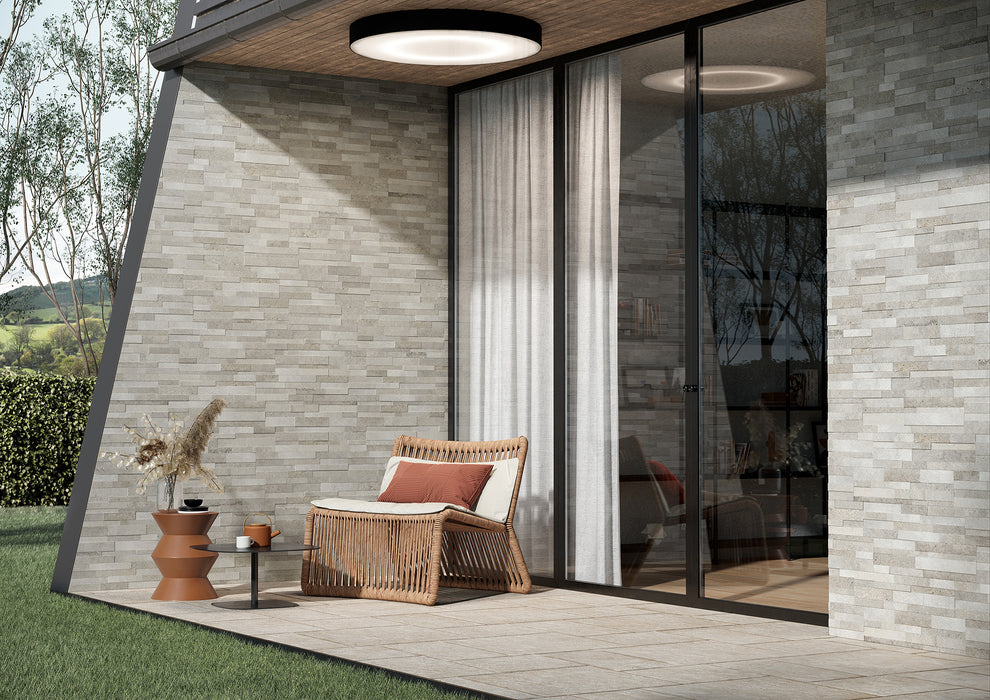

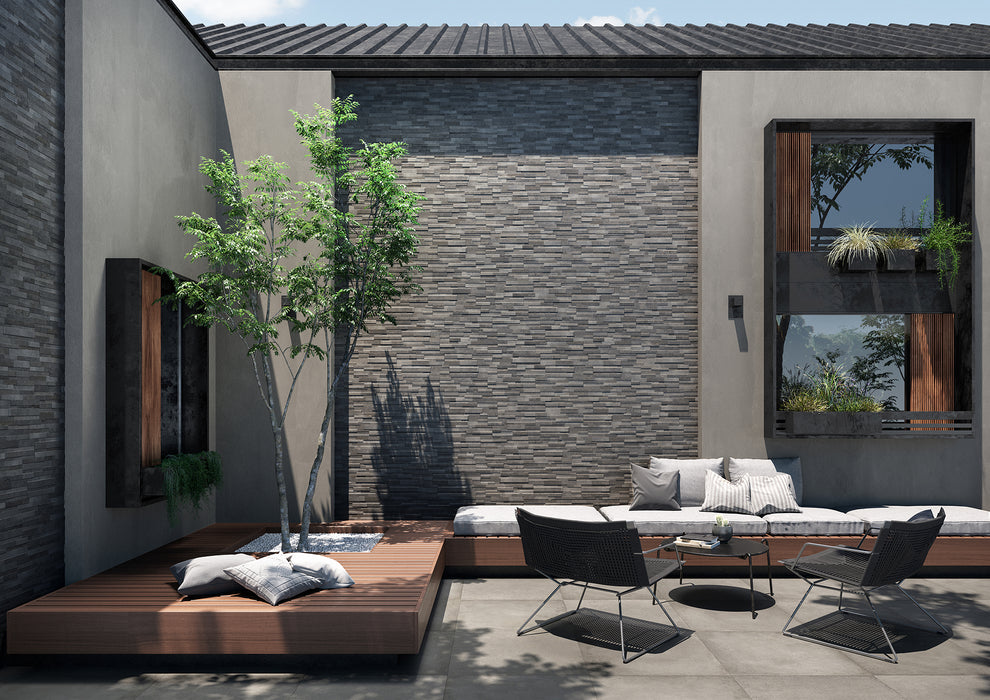

| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | YES |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | YES |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | NO |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | NO |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | NO |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | NO |
| POOL DECK | NO |
| POOL WATERLINE | YES |
| INSIDE POOL | YES |
| SPA / HOT TUB | YES |
| UV/ SUN EXPOSURE SENSITIVE | TIP |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
