CATCH™ MATTE
Glazed Ceramic
Description

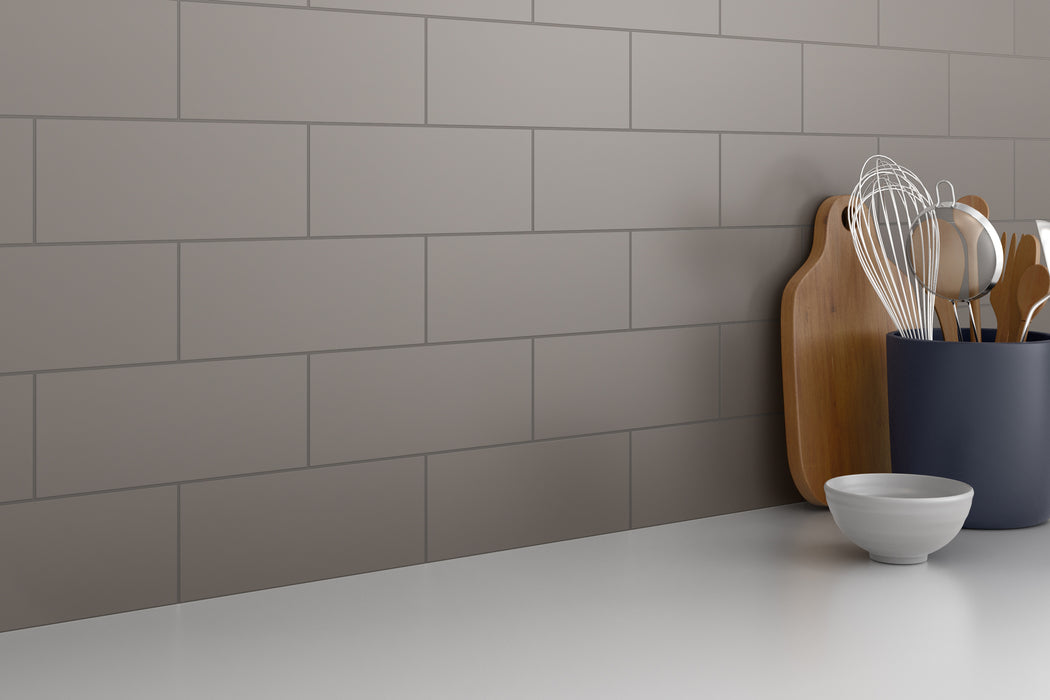

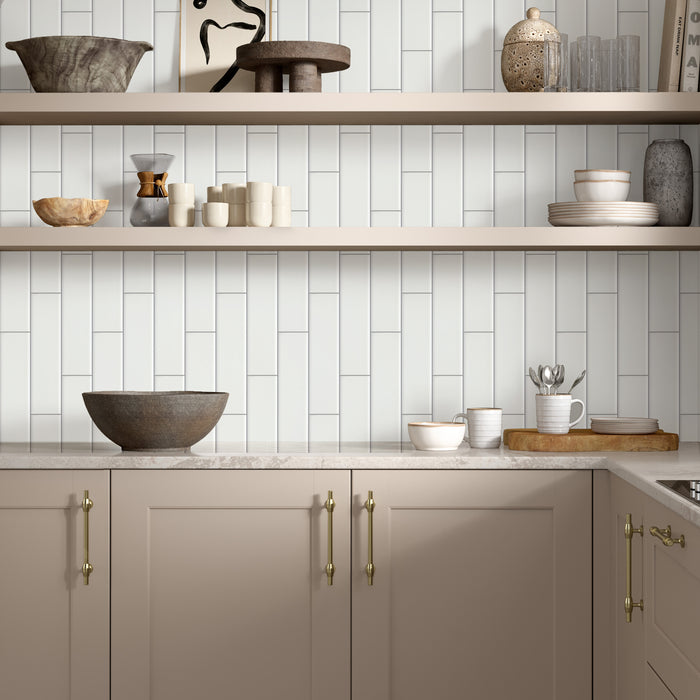

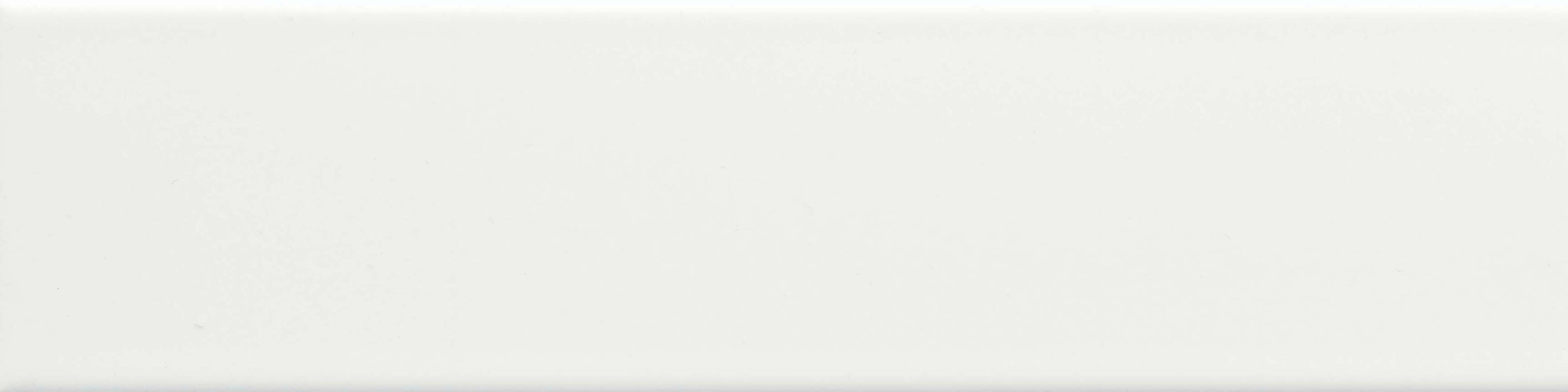

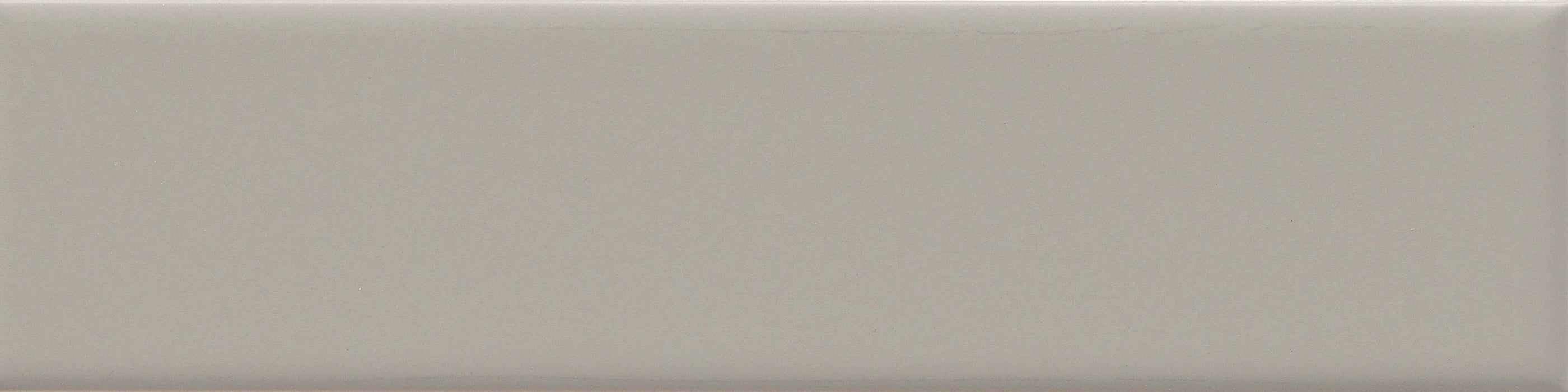

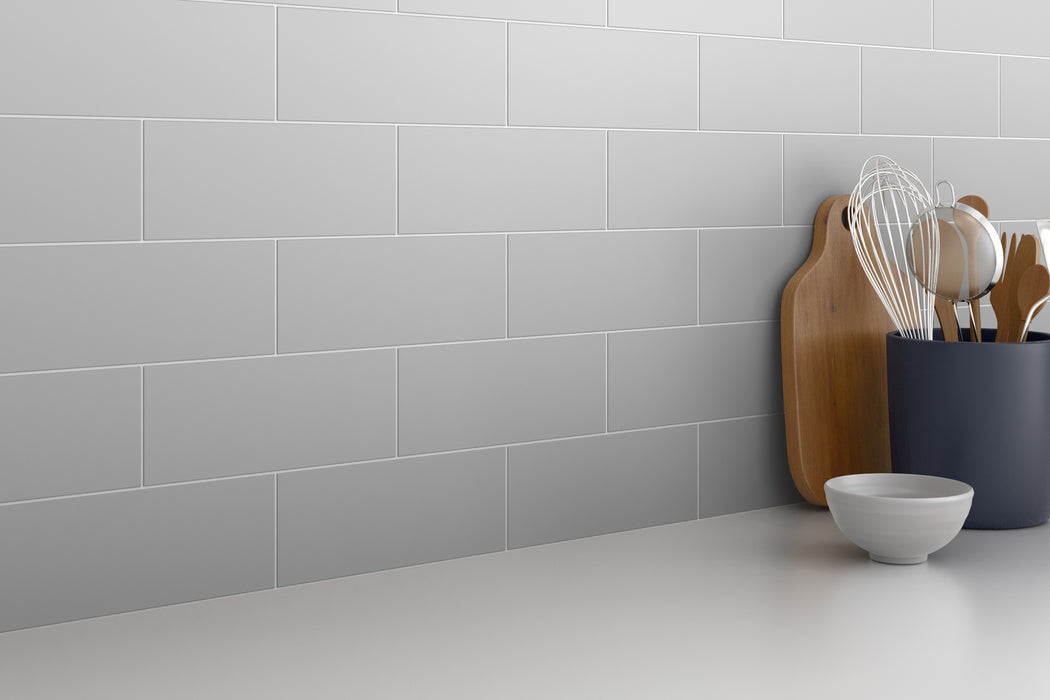

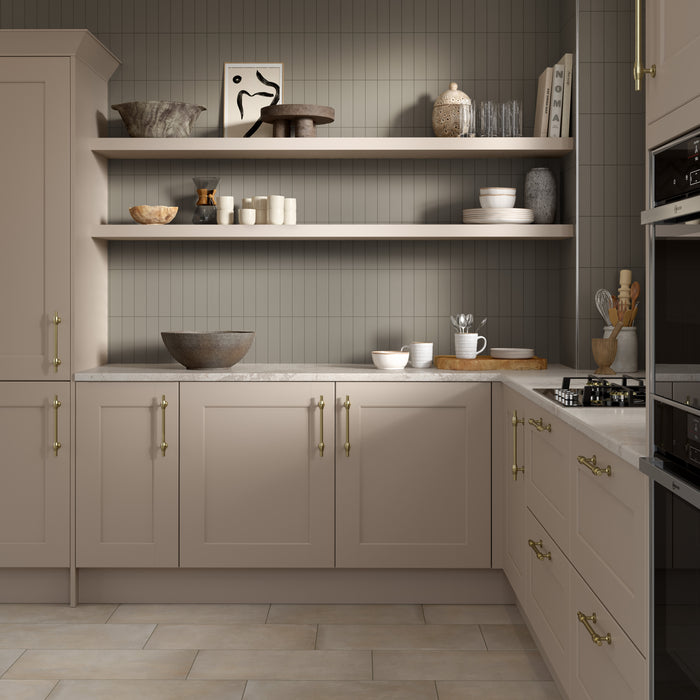

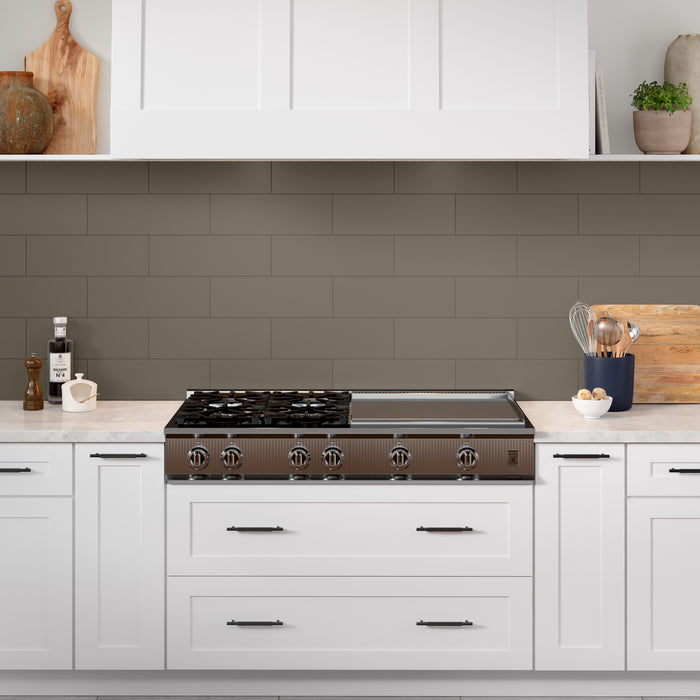

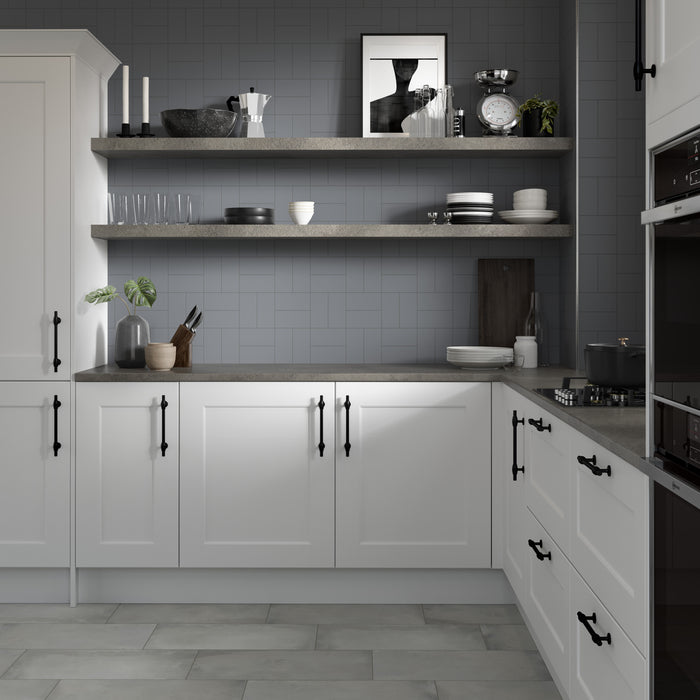

Catch™ a glazed ceramic wall tile that will capture your imagination and inspire truly one- of-a-kind designs. Available in seven sizes and both a matte and glossy finish, this is no ordinary subway tile. The cool color tones are reminiscent of ocean waves and bring a sense of serenity to any room.

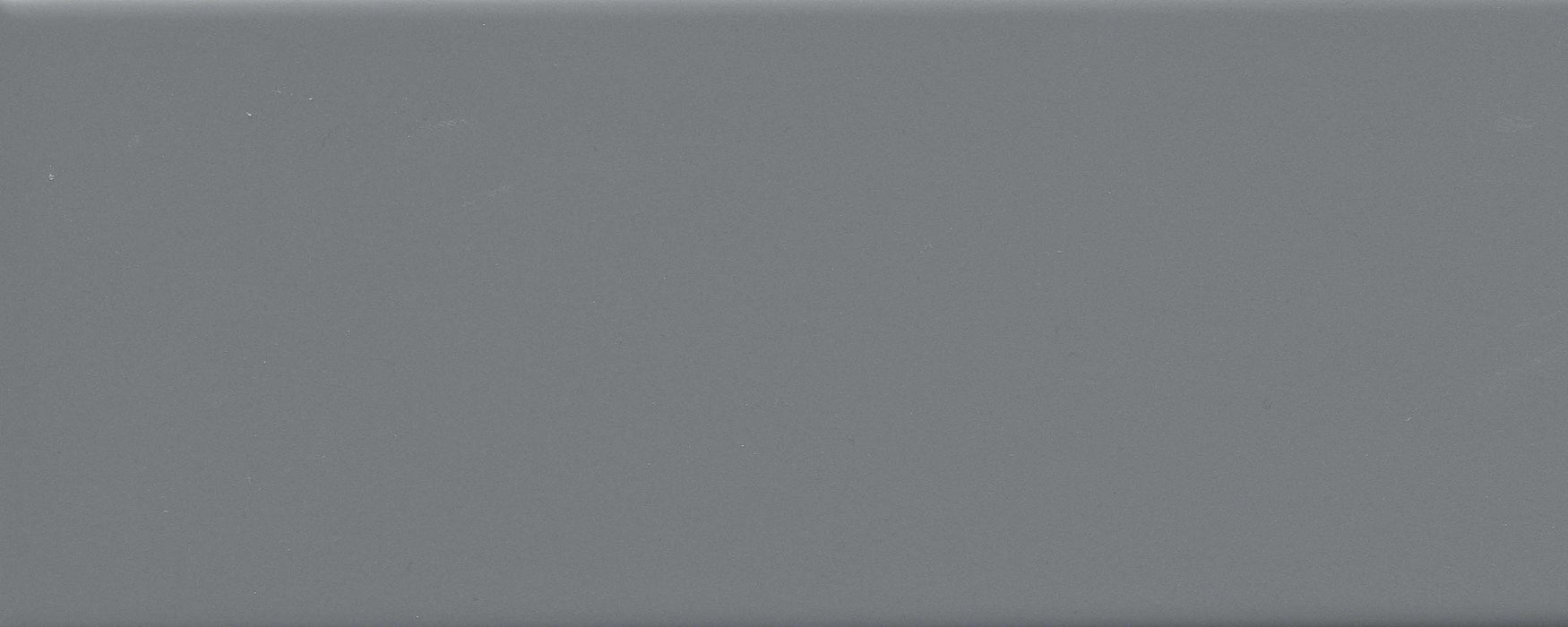

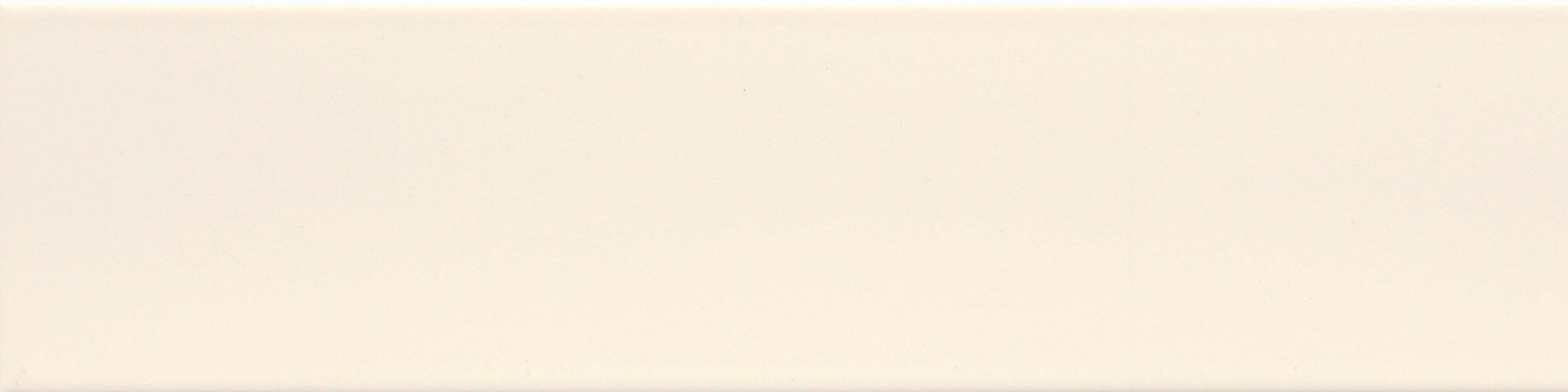

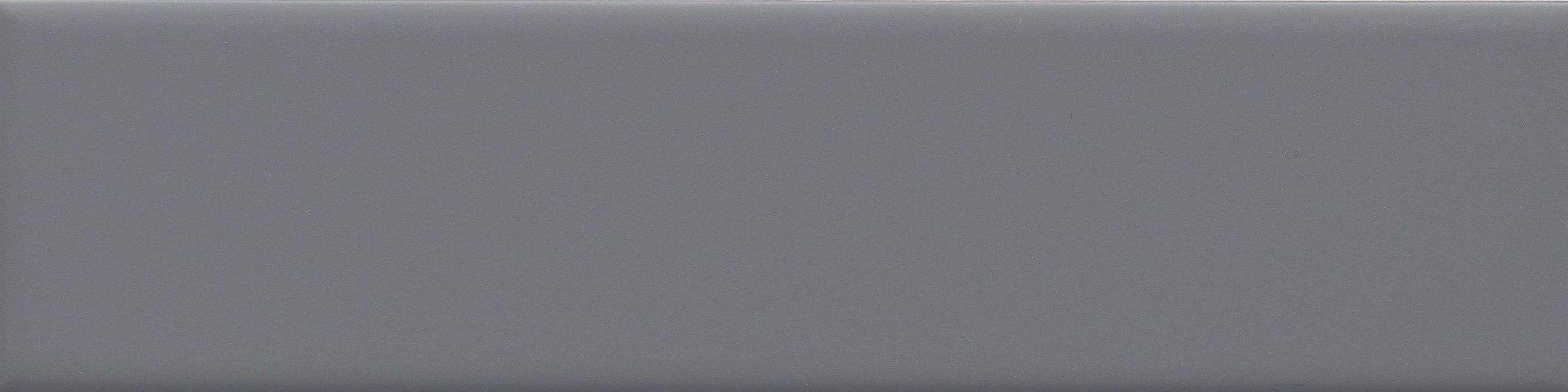

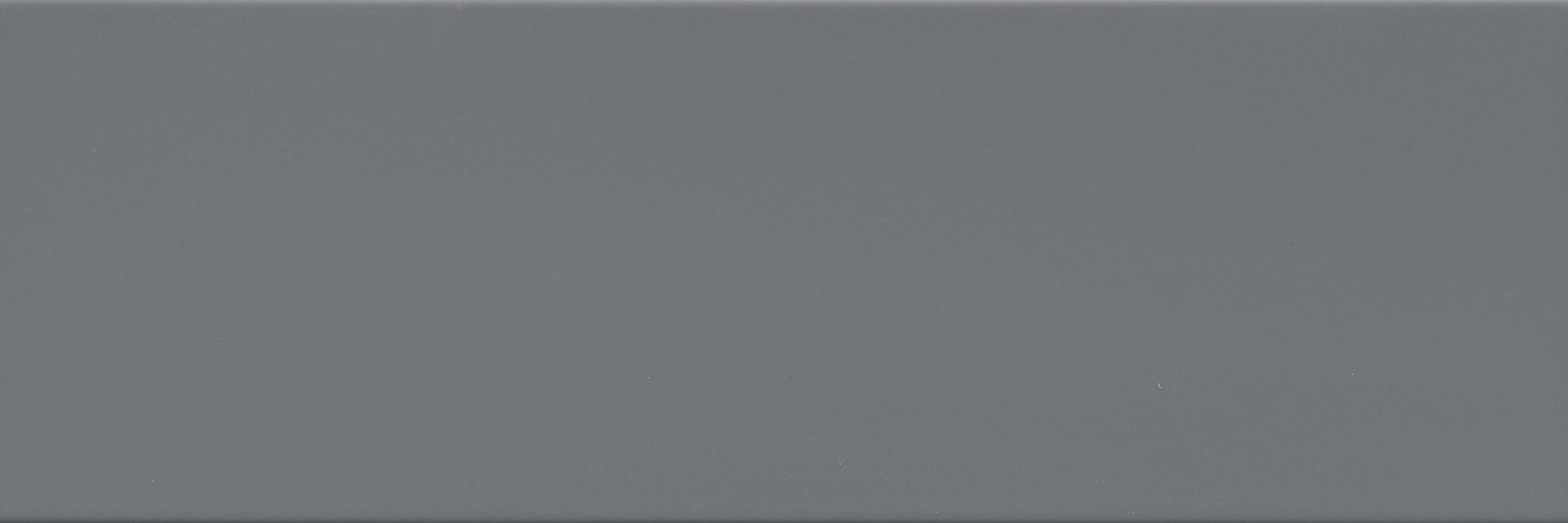

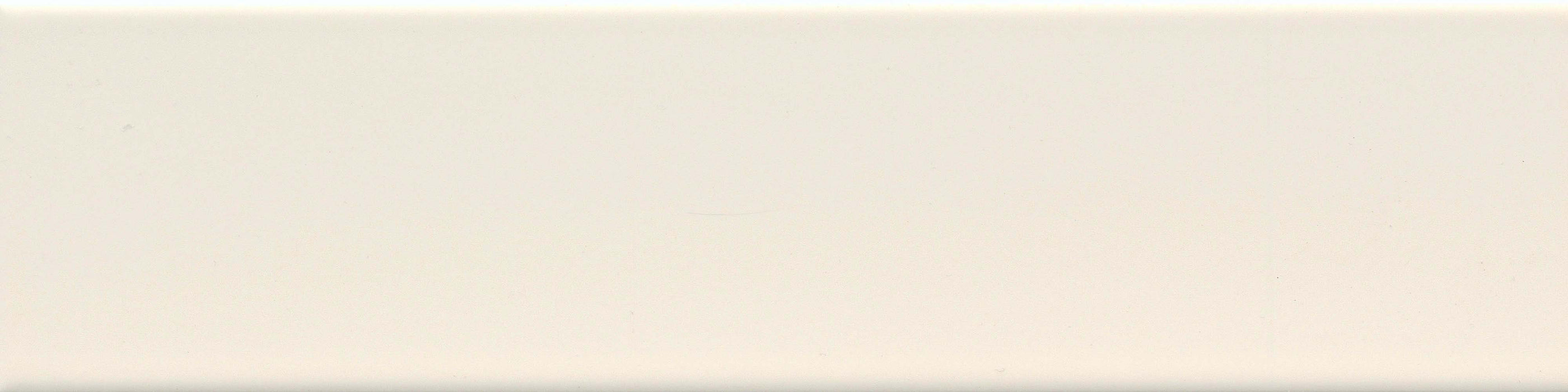

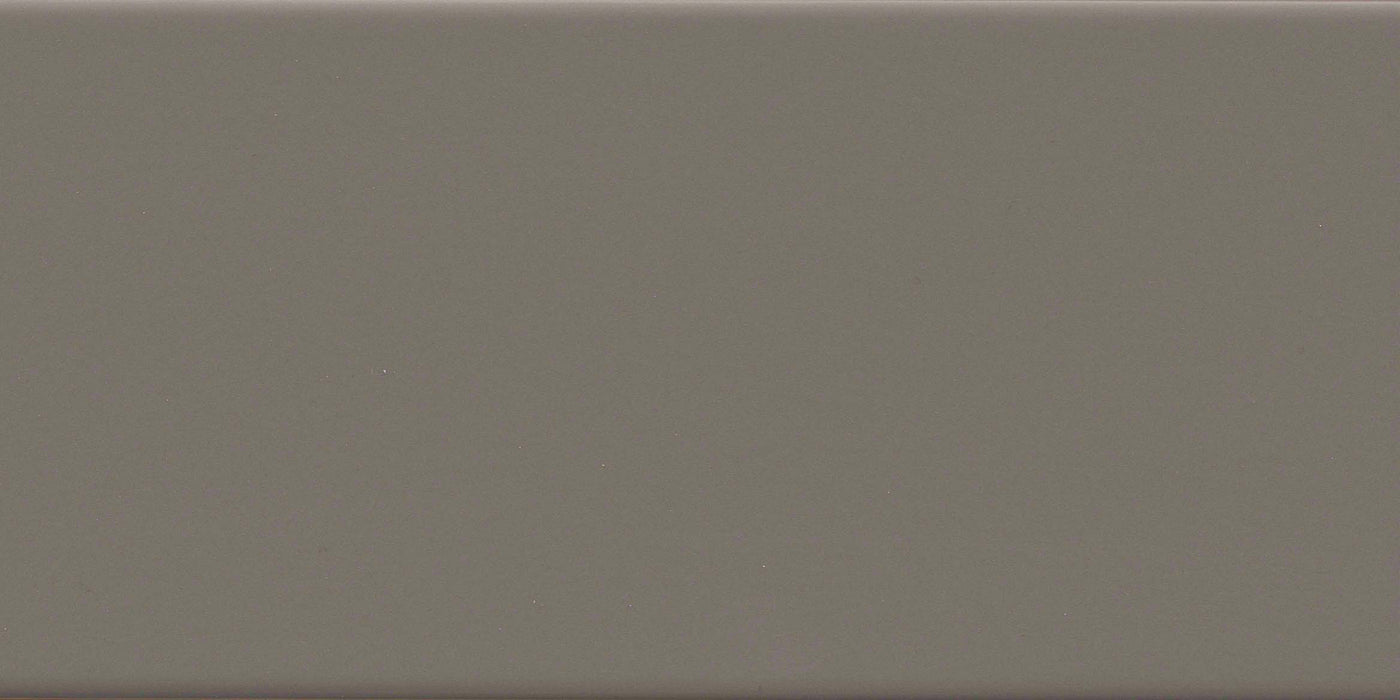

6 Colors | 7 Sizes
Technical Specifications
| Nominal Size (in.) |
6" x 18" |
| Edge Detail | Pressed |
| Finish | Gloss & Matte |
| Thickness (mm.)* | 7.6mm |
| Faces | 1 |
| Lbs./PC |
6" x 18": 2.0 4" x 16": 1.2 4" x 10": 0.75 3" x 12": 0.70 6" x 6": 0.75 3" x 6": 0.30 12" x 12": 2.2 |
| Grout Joint Recommendation | 1/8" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
** 6 x 18 is not to exceed 33% offset during installation
Testing
| Method | Results |
| Abrasion Resistance C1027 | TIP |
| Breaking Strength C648 | >150 |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <20.0 |
| DCOF AcuTest WET | TIP |
| Scratch Hardness MOHS | 3 |
| Shade Variation | V1 |
Download Green Friendly Certificate
Download and View Care and Maintenance
Sizes and Trim
Sizes
Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* |
|
| RESIDENTIAL FLOOR | YES: 2"x2" Mosaic NO: All other sizes |
| RESIDENTIAL AND COMMERCIAL WALL |
|
| SHOWER WALL | YES |
| SHOWER FLOOR |
YES: 2"x2" Mosaic NO: All other sizes |
| STEAM SHOWER | NO |
| KITCHEN COUNTER |
|
| STOVE AREA |
|

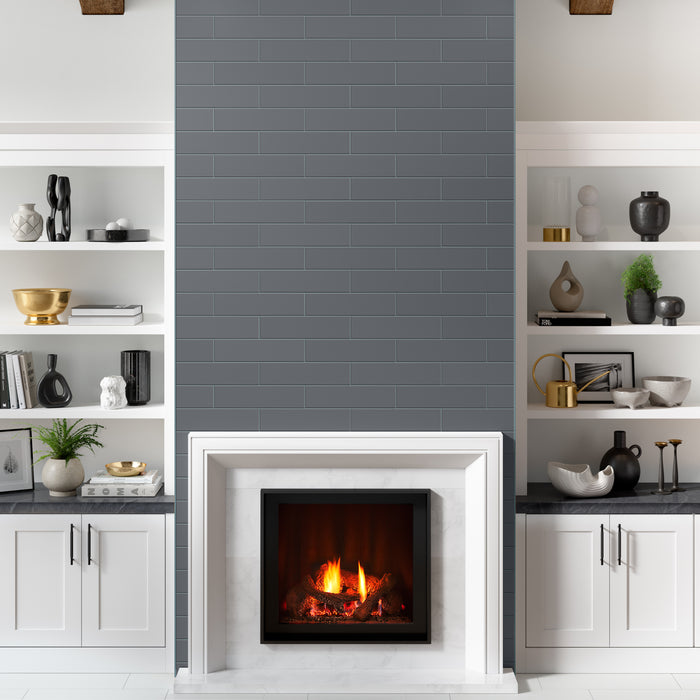

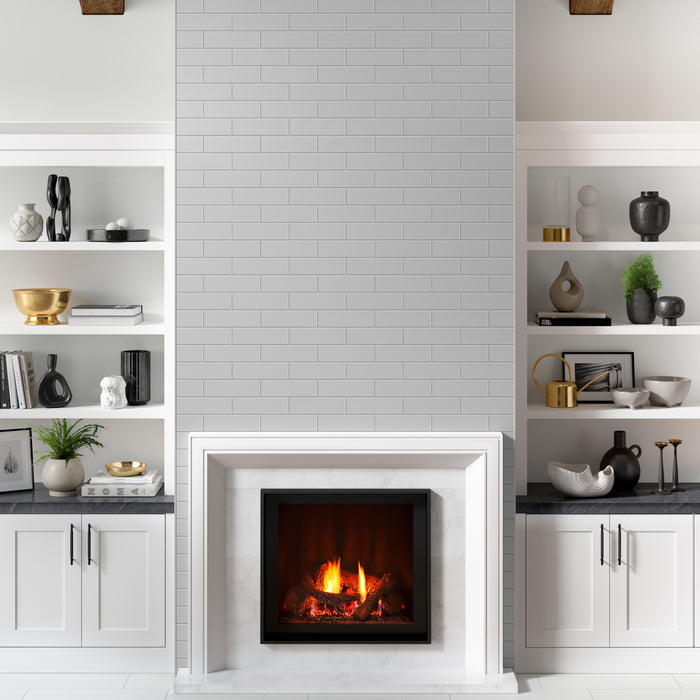

| FIREPLACE FACADE |
|
| COVERED EXTERIOR WALL FREEZING CLIMATES |
|
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | NO |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR† FLOOR NON-FREEZING CLIMATES |
|
| POOL DECK |
|
| POOL WATERLINE |
|
| INSIDE POOL |
|
| SPA / HOT TUB |
|
| UV STABLE | YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
