SWISS II™
GLAZED PORCELAIN
Description

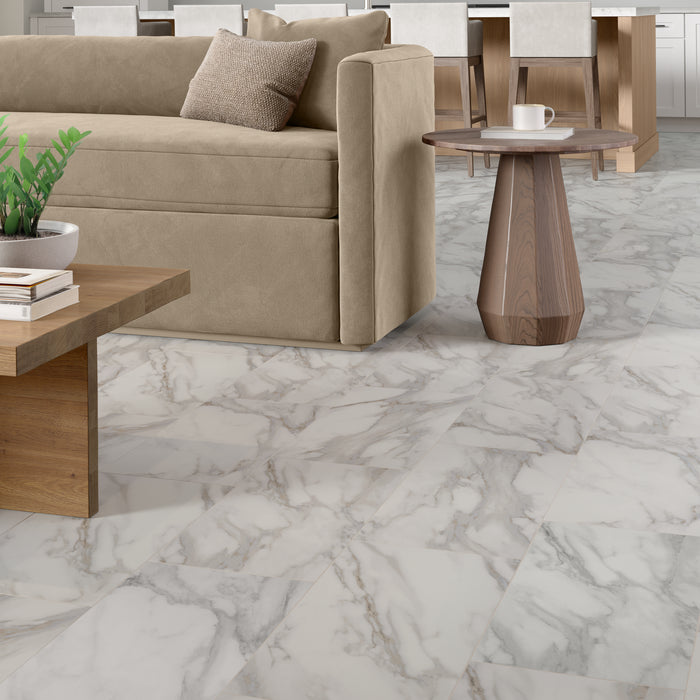

Swiss II™ radiates sophisticated beauty highlighting the soft veining of natural stone in a porcelain tile. With polished and matte finishes in multiple sizes, the design possibilities are limitless.
Technical Specifications
1 Color | 4 Sizes
Technical Specifications
| Nominal Size (in.) | 32" x 32" | 24" x 47" | 11" x 23" | 12" x 23" |
| Edge Detail | Rectified | Rectified | Rectified | Rectified |
| Finish | Polished | Polished | Polished | Matte |
| Faces | 10 | 10 | 20 | 20 |
| Thickness (mm.)* | 10 | 10 | 10 | 10 |
| Grout Joint Recommendation (in.) | 3/16 | 3/16 | 3/16 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
**TIP ( Testing is in progress, and results will be available soon.)
Testing
| Method | Results |
| Abrasion Resistance C1027* | III |
| Breaking Strength C648 | >700lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.5% |
|
DCOF |
>0.55 (Matte) <0.42 (Polished) |
| Scratch Hardness MOHS |
5 |
| Shade Variation | V2 |
| VOC | None |
Download and View Care And Maintenance
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
**TIP ( Testing is in progress, and results will be available soon.)
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR DRY* |
YES |
| COMMERCIAL FLOOR WET* |
Matte: YES Polished: NO |
| RESIDENTIAL FLOOR | YES |
| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| SHOWER FLOOR |
Matte: YES Polished: NO |
| STEAM SHOWER | YES |
| KITCHEN COUNTER | YES |
| STOVE AREA | YES |
| FIREPLACE FACADE | YES |
| EXTERIOR WALL | YES |
| EXTERIOR FLOOR (NOT POOL) |
Matte: YES Polished: NO |
| POOL DECK | NO |
| POOL WATERLINE | YES |
| INSIDE POOL | NO |
| SPA / HOT TUB | NO |
| UV STABLE |
YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
