Archive™ is inspired by the structural movement of veincut marble. Bold lines and color variation bring heightened contrast to draw in the eye. All colors are available in a matte finish in our Chronicle™ series
4 Colors | 1 Size
Technical Specifications
Nominal Size (in.) | 11 x 23 |
Edge Detail | Rectified |
Finish | Polished |
Faces | 16 |
Thickness (in.)* | 3/8 |
Lbs/PC | 8.38 |
Grout Joint Recommendation (in.) | 1/8 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
All colors available in a matte finish as Chronicle™ series.
Testing
Method | Results |
Abrasion Resistance C1027* | III |
Breaking Strength C648 | > 350 lbf |
Chemical Resistance C650 | Resistant |
Water Absorption C373 | ≤ 0.50 |
DCOF AcuTest WET | <0.42 |
Freeze-Thaw Cycling C1026 | Resistant |
Scratch Hardness MOHS | 9 |
Shade Variation | V3 |
Pre-Consumer Recycled Content | 4% |
Post-Consumer Recycled Content | 0% |
VOC | None |
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
11” x 23” (11.42”x 23.23”)
3" x 23" Floor SBN

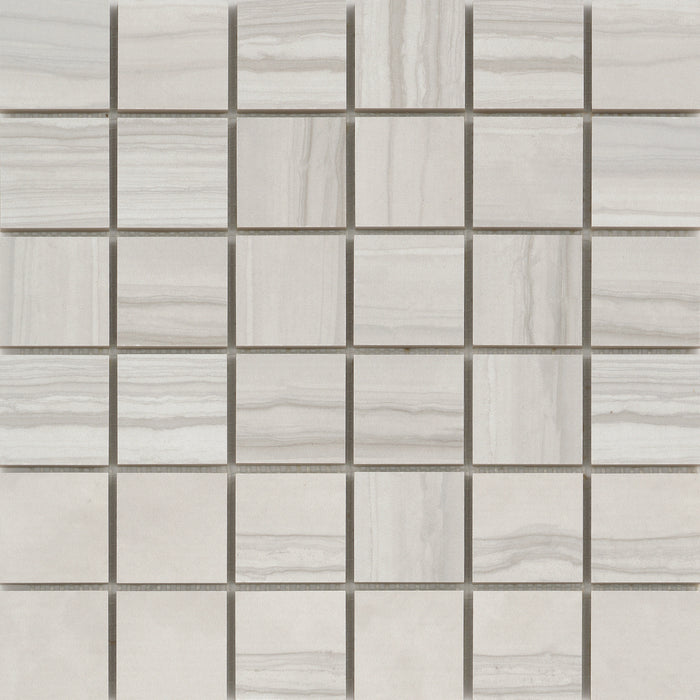

2" x 2" on 12” x 12” Mesh Mosaic
USAGE TYPES: | YES/NO |
COMMERCIAL FLOOR | Yes |
COMMERCIAL DINING FLOOR | No |
RESIDENTIAL FLOOR | Yes |
RESIDENTIAL AND COMMERCIAL WALL | Yes |
SHOWER WALL | Yes |
SHOWER FLOOR | No |
STEAM SHOWER | Yes |
KITCHEN COUNTER | Yes |
STOVE AREA | Yes |
FIREPLACE FACADE | Yes |
COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
COVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
POOL DECK | No |
POOL WATERLINE | Yes |
INSIDE POOL | Yes |
SPA / HOT TUB | Yes |
UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
F02ARCHER1123P
Archive™ is inspired by the structural movement of veincut marble. Bold lines and color variation bring heightened contrast to draw in the eye. All colors are available in a matte finish in our Chronicle™ series
4 Colors | 1 Size
Technical Specifications
Nominal Size (in.) | 11 x 23 |
Edge Detail | Rectified |
Finish | Polished |
Faces | 16 |
Thickness (in.)* | 3/8 |
Lbs/PC | 8.38 |
Grout Joint Recommendation (in.) | 1/8 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
All colors available in a matte finish as Chronicle™ series.
Testing
Method | Results |
Abrasion Resistance C1027* | III |
Breaking Strength C648 | > 350 lbf |
Chemical Resistance C650 | Resistant |
Water Absorption C373 | ≤ 0.50 |
DCOF AcuTest WET | <0.42 |
Freeze-Thaw Cycling C1026 | Resistant |
Scratch Hardness MOHS | 9 |
Shade Variation | V3 |
Pre-Consumer Recycled Content | 4% |
Post-Consumer Recycled Content | 0% |
VOC | None |
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
Download and View Care And Maintenance
11” x 23” (11.42”x 23.23”)
3" x 23" Floor SBN
2" x 2" on 12” x 12” Mesh Mosaic
USAGE TYPES: | YES/NO |
COMMERCIAL FLOOR | Yes |
COMMERCIAL DINING FLOOR | No |
RESIDENTIAL FLOOR | Yes |
RESIDENTIAL AND COMMERCIAL WALL | Yes |
SHOWER WALL | Yes |
SHOWER FLOOR | No |
STEAM SHOWER | Yes |
KITCHEN COUNTER | Yes |
STOVE AREA | Yes |
FIREPLACE FACADE | Yes |
COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
COVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
POOL DECK | No |
POOL WATERLINE | Yes |
INSIDE POOL | Yes |
SPA / HOT TUB | Yes |
UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
Archive Era / 11" X 23" / Gray
F02ARCHER1123P
Archive Memoir / 11" X 23" / Beige
F02ARCHME1123P
Archive Record / 11" X 23" / Gray
F02ARCHRE1123P
Archive Era / 2"x2" Mosaic Mesh / Gray
F02ARCHER1212MOP
Archive Memoir / 2"x2" Mosaic Mesh / Beige
F02ARCHME1212MOP
Archive Record / 2"x2" Mosaic Mesh / Gray
F02ARCHRE1212MOP
