GLAZED BODY MATCH PORCELAIN
Description

Combined with its concrete, linear pattern, Hangar™ delivers a flexible, modern solution offered in large format panels in a trending tile size.

Color: Coal
SKU V40HANGCO3131
Sample Price: Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00
View In Visualizer

Technical Specifications

4 Colors | 4 Sizes

Technical Specifications

Nominal Size (in.) 63 x 126 23 x 47 31 x 31 12 x 23
Edge Detail Rectified Rectified Rectified Rectified
Finish Satin Satin Satin Satin
Faces TBD TBD TBD TBD
Thickness (in.)* 5/16 5/16 5/16 3/8
Lbs/PC 205.03 27.78 24.69 7.78
Grout Joint Recommendation (in.) TBD 3/16 1/8 1/8

* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.

Testing

Method Results
Abrasion Resistance C1027 V
Breaking Strength C648 ≥300
Chemical Resistance C650 Resistant
Water Absorption C373

≤0.50

DCOF AcuTest WET

≥0.45
Freeze-Thaw Cycling C1026 Resistant
Scratch Hardness MOHS 7
Shade Variation

V2

Pre-Consumer Recycled Content 0%
Post-Consumer Recycled Content 0%
VOC None

Download and View SDS

Download and View HPD

Download and View LEED

Download 3 Part CSI

Download and View Care and Maintenance

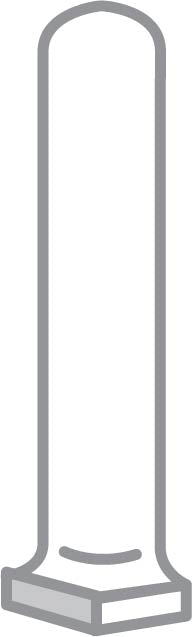

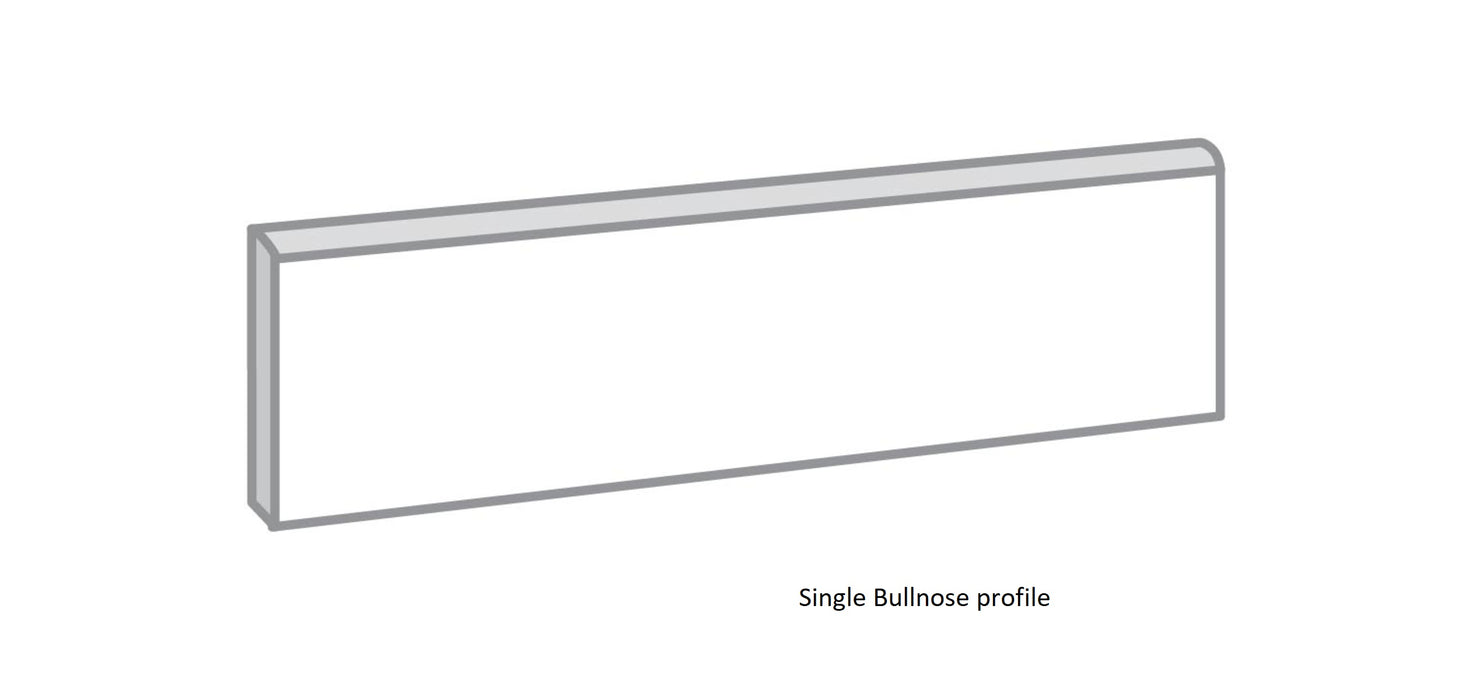

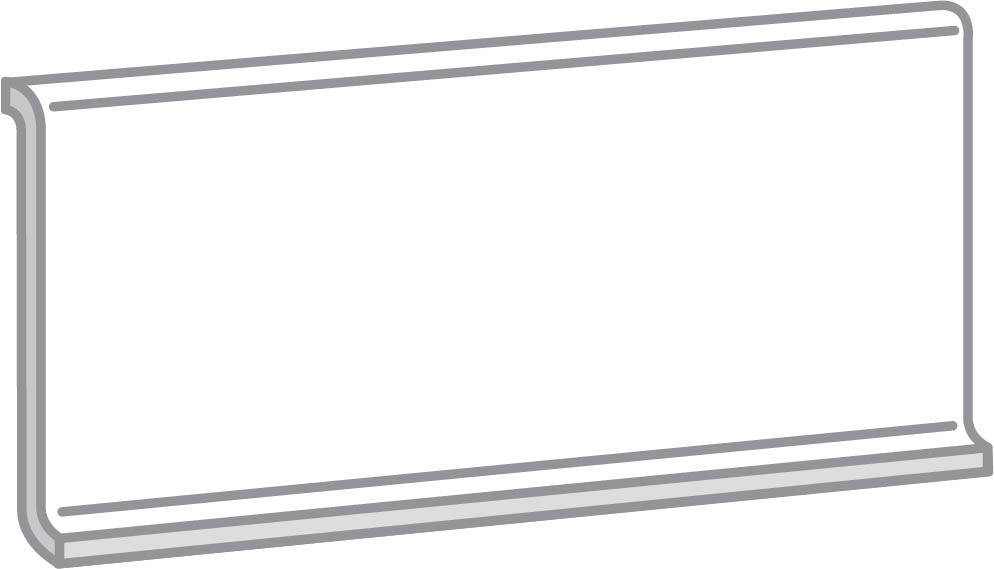

Sizes and Trim

63" x 126"

31” x 31”

23” x 47”

12” x 23”

Usage

USAGE TYPES: YES/NO
COMMERCIAL FLOOR* Yes
RESIDENTIAL FLOOR Yes
RESIDENTIAL AND COMMERCIAL WALL
Yes
SHOWER WALL
Yes
SHOWER FLOOR
Yes
STEAM SHOWER
Yes
KITCHEN COUNTER
Yes
STOVE AREA
Yes
FIREPLACE FACADE
Yes
COVERED EXTERIOR WALL FREEZING CLIMATES
Yes
COVERED EXTERIOR WALL NON-FREEZING CLIMATES
Yes
UNCOVERED EXTERIOR WALL FREEZING CLIMATES
Yes
UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES
Yes
COVERED EXTERIOR FLOOR FREEZING CLIMATES
No
COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES
No
UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES
No
UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES
No
POOL DECK
Yes
POOL WATERLINE
Yes
INSIDE POOL
Yes
SPA / HOT TUB
Yes
UV/ SUN EXPOSURE SENSITIVE
No

* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.

The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
